Description
General part information

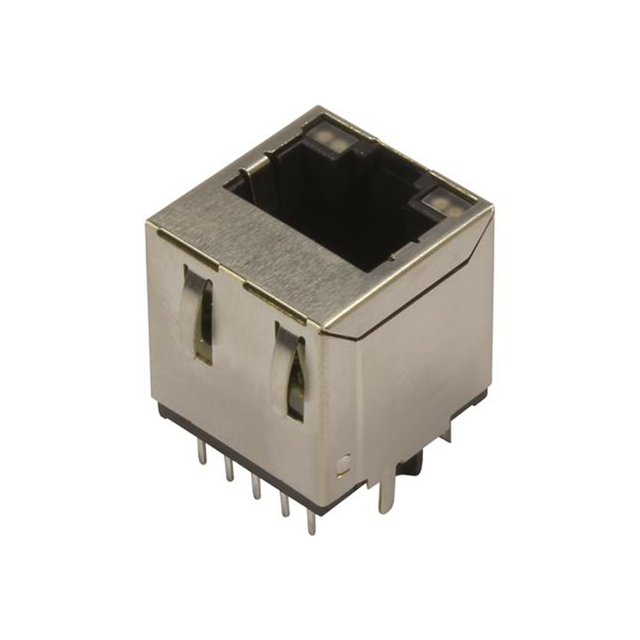

09455511141
1 Port RJ45Through Hole 10/100 Base-T, AutoMDIX
Technical Specifications
Parameters and characteristics for this part
| Specification | 09455511141 |
|---|---|
| Applications | AutoMDIX, 10/100 Base-T |
| Connector Type | RJ45 |
| Features | Board Guide |
| Height Above Board | 0.661 in |
| LED Color | Green - Yellow |
| Mounting Type | Through Hole |
| Number of Cores per Jack | 4 |
| Number of Ports | 1 |
| Number of Rows | 1 |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Orientation | Vertical |
| Shielding | EMI Finger, Shielded |
| Tab Direction | User Selectable |
| Termination | Solder |
