FSI-115-06-L-D-AD-TR

Active

Samtec Inc.

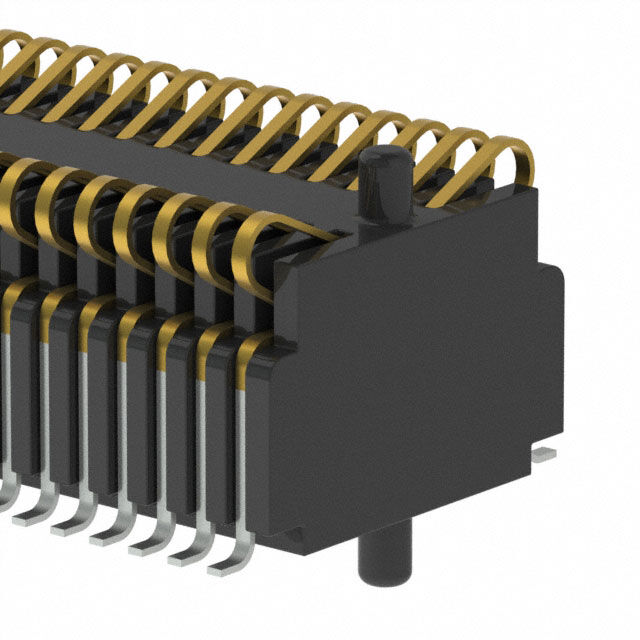

CONN ONE PIECE BOARD STACKER HDR 30 POS 1MM SOLDER ST SMD T/R

Search across all available documentation for this part.

Active

Samtec Inc.

CONN ONE PIECE BOARD STACKER HDR 30 POS 1MM SOLDER ST SMD T/R

Technical Specifications

Parameters and characteristics for this part

Part	Height Above Board	Height Above Board	Pitch [x]	Pitch [x]	Contact Finish Thickness	Contact Finish Thickness	Contact Finish	Number of Positions	Mounting Type	Features	Number of Rows
Samtec Inc. FSI-115-03-G-D-AT-K-TR	0.118 in	3 mm	0.039 in	1 mm	10 Áin	0.25 Ám	Gold	30	Surface Mount	Mating Flange Pick and Place	2
Samtec Inc. FSI-115-03-G-S-AD-TR	0.118 in	3 mm	0.039 in	1 mm	10 Áin	0.25 Ám	Gold	15	Surface Mount	Board Guide Mating Guide	1
Samtec Inc. FSI-115-03-H-D-AD-K-TR	0.118 in	3 mm	0.039 in	1 mm	30 Áin	0.76 Ám	Gold	30	Surface Mount	Board Guide Mating Guide Pick and Place	2
Samtec Inc. FSI-115-06-L-D-AD-P	0.236 in	6 mm	0.039 in	1 mm	10 Áin	0.25 Ám	Gold	30	Surface Mount	Board Guide Mating Guide Pick and Place	2
Samtec Inc. FSI-115-03-H-D-AT-TR	0.118 in	3 mm	0.039 in	1 mm	30 Áin	0.76 Ám	Gold	30	Surface Mount	Mating Flange	2
Samtec Inc. FSI-115-06-L-D-AD-TR	0.236 in	6 mm	0.039 in	1 mm	10 Áin	0.25 Ám	Gold	30	Surface Mount	Board Guide Mating Guide	2
Samtec Inc. FSI-115-06-L-S-AB	0.236 in	6 mm	0.039 in	1 mm	10 Áin	0.25 Ám	Gold	15	Surface Mount	Board Guide	1
Samtec Inc. FSI-115-03-G-D-AT-K	0.118 in	3 mm	0.039 in	1 mm	10 Áin	0.25 Ám	Gold	30	Surface Mount	Mating Flange Pick and Place	2
Samtec Inc. FSI-115-06-L-D-AD	0.236 in	6 mm	0.039 in	1 mm	10 Áin	0.25 Ám	Gold	30	Surface Mount	Board Guide Mating Guide	2
Samtec Inc. FSI-115-03-G-D-AT	0.118 in	3 mm	0.039 in	1 mm	10 Áin	0.25 Ám	Gold	30	Surface Mount	Mating Flange	2

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

30 Position Connector Stacking Compression Surface Mount Gold
