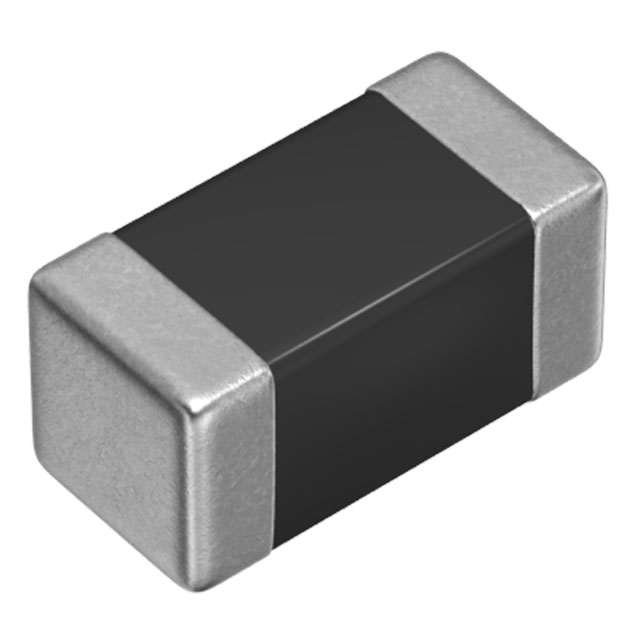

MLP1608V1R0BT0S1
ActiveTDK Corporation
INDUCTOR POWER SHIELDED MULTI-LAYER 1UH 20% 2MHZ FERRITE 0.7A 0.39OHM DCR 0603 T/R
MLP1608V1R0BT0S1
ActiveTDK Corporation
INDUCTOR POWER SHIELDED MULTI-LAYER 1UH 20% 2MHZ FERRITE 0.7A 0.39OHM DCR 0603 T/R
Description
General part information
MLP1608V1R0BT0S1
1 µH Shielded Multilayer Inductor 700 mA 390mOhm Max 0603 (1608 Metric)
Technical Specifications
Parameters and characteristics for this part
| Specification | MLP1608V1R0BT0S1 |
|---|---|
| Current Rating | 700 mA |
| DC Resistance (DCR) (Max) | 390 mOhm |
| Height - Seated (Max) | 0.037 in |
| Inductance | 1 µH |
| Inductance Frequency - Test | 2 MHz |
| Material - Core | Ferrite |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | 0603 (1608 Metric) |
| Package Name | 0603 (1608 Metric) |
| Shielding | Shielded |
| Size / Dimension Length | 0.063 in |
| Size / Dimension Width | 0.031 in |
| Tolerance | 20 % |
| Type | Multilayer |
