Description
General part information
09670375654

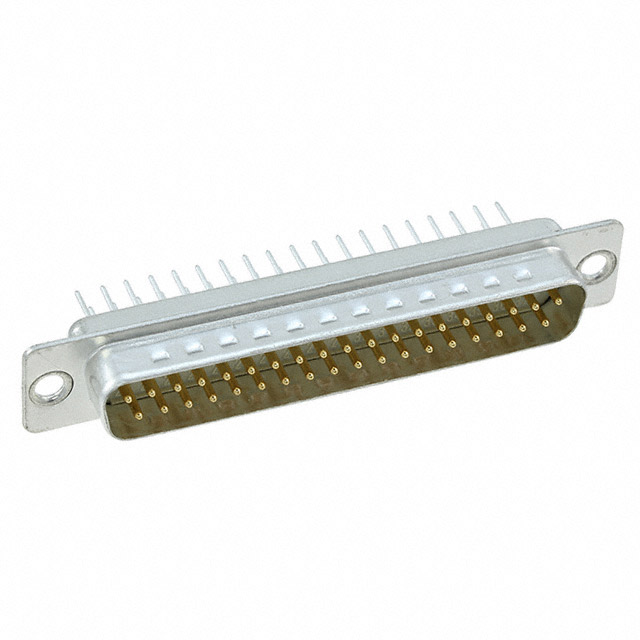

37 Position D-Sub Plug, Male Pins Connector
Technical Specifications
Parameters and characteristics for this part
| Specification | 09670375654 |
|---|---|
| Connector Layout | DC, C |
| Connector Style | D-Sub |
| Connector Type | Male Pins, Plug |
| Contact Form | Machined |
| Contact Material | Copper Alloy |
| Contact Type | Signal |
| Current Rating | 7.5 A |
| Dielectric Material | Glass Filled, Polybutylene Terephthalate (PBT), Polyester |
| Features | Grounding Indents |
| Flange Feature | Shell (Unthreaded), Housing |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole |
| Number of Positions | 37 pos |
| Number of Rows | 2 |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Shell Material, Finish | Steel |
| Shell Size | 4 |
| Termination | Solder |
