16982-7PG-522

Active

Conxall/Switchcraft

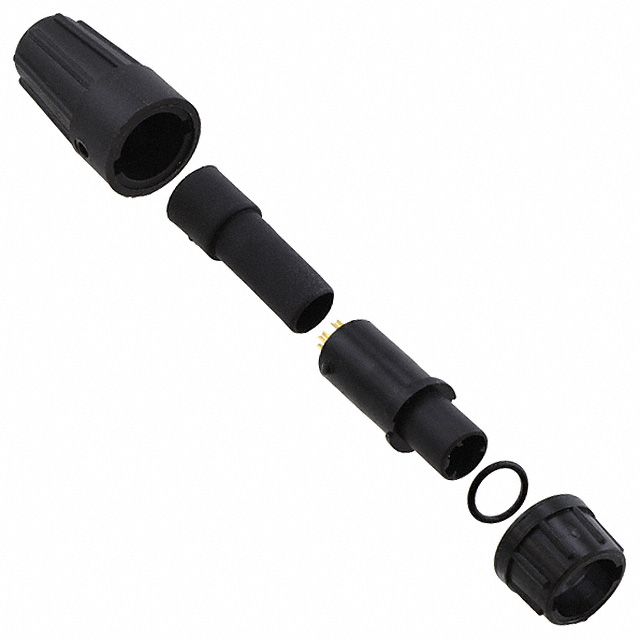

CONN PLUG MALE 7P GOLD SLDR CUP

Search across all available documentation for this part.

Active

Conxall/Switchcraft

CONN PLUG MALE 7P GOLD SLDR CUP

Technical Specifications

Parameters and characteristics for this part

Specification	16982-7PG-522

Applications	Medical, Data, Instrumentation, Industrial
Backshell Material, Plating	Thermoplastic
Cable Opening [Max] [diameter]	5.84 mm
Cable Opening [Max] [diameter]	0.23 in
Cable Opening [Min] [diameter]	0.22 in
Cable Opening [Min] [diameter]	5.59 mm
Color	Black
Connector Type	Plug, Male Pins
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Current Rating (Amps)	3.5 A
Fastening Type	Bayonet Lock
Features	Backshell
Ingress Protection	IP67 - Dust Tight, Waterproof
Material Flammability Rating	UL94 HB
Mounting Type	Free Hanging (In-Line)
Number of Positions	7
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Orientation	B
Primary Material	Plastic
Shielding	Unshielded
Voltage Rating	600 VAC

CONN PLUG MALE 7P GOLD SLDR CUP

Part	Current Rating (Amps)	Connector Type	Orientation	Voltage Rating	Material Flammability Rating	Backshell Material, Plating	Operating Temperature [Max]	Operating Temperature [Min]	Number of Positions	Contact Material	Applications	Contact Finish - Mating	Primary Material	Fastening Type	Color	Ingress Protection	Mounting Type	Features	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]	Shielding
Conxall/Switchcraft 16982-7PG-522	3.5 A	Male Pins, Plug	B	600 VAC	UL94 HB	Thermoplastic	85 °C	-40 °C	7	Copper Alloy	Data, Industrial, Instrumentation, Medical	Gold	Plastic	Bayonet Lock	Black	IP67 - Dust Tight, Waterproof	Free Hanging (In-Line)	Backshell	5.84 mm	0.22 in	5.59 mm	0.23 in	Unshielded
