Description
General part information

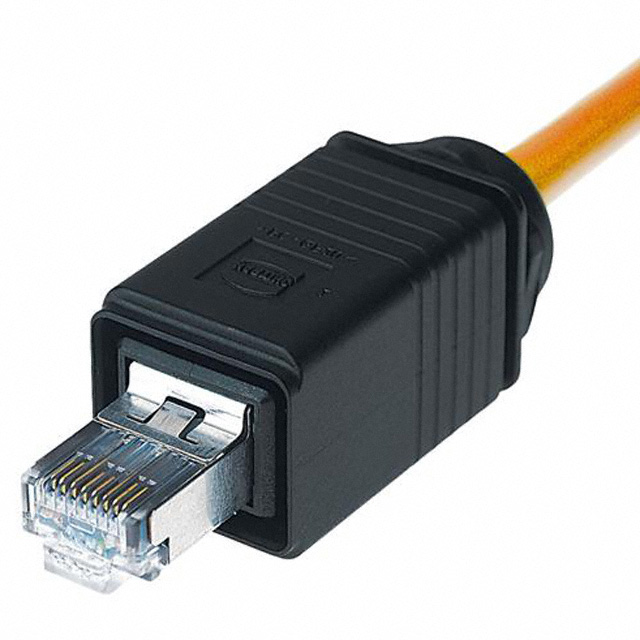

09451451510
Plug Modular Connector 8p8c (RJ45, Ethernet) Position Shielded Cat6 IDC
Technical Specifications
Parameters and characteristics for this part
| Specification | 09451451510 |
|---|---|
| Cable Type | Round Cable, Stranded Wires |
| Color | Black |
| Connector Type | Plug, Ethernet, RJ45 |
| Contact Finish | Gold |
| Contact Finish Thickness | 50 µin |
| Contact Material | Nickel |
| Ingress Protection Description | Dust Tight, Water Resistant, Waterproof |
| Ingress Protection IP Rating | IP67, IP65 |
| Length | 2.258 in |
| Number of Contacts | 8 |
| Number of Positions | 8 |
| Ratings | Cat6 |
| Shielding | Shielded |
| Termination | IDC |
| Wire Gauge (AWG) (Max) | 28 AWG |
| Wire Gauge (AWG) (Min) | 24 AWG |
