Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | STEVAL-MKI198V1K | STTS751 Series |
|---|---|---|
| Accuracy - Highest (Lowest) | - | 1.5 °C |
| Accuracy - Highest (Lowest) | - | 2.5 °C |
| Contents | Board(s) | Board(s) |
| Function | Temperature | Temperature |
| Interconnect System | DIL24 | DIL24 |
| Mounting Type | - | Surface Mount |
| Operating Temperature | - | 125 °C |
| Operating Temperature | - | -40 °C |
| Output Type | - | SMBus |
| Package / Case | - | SOT-23-6, 6-UDFN |
| Platform | Professional MEMS Tool | Professional MEMS Tool |
| Resolution | - | 11 b |
| Sensing Temperature - Local | - | 125 °C |
| Sensing Temperature - Local | - | -40 °C |
| Sensor Type | - | Digital, Local |
| Suggested Programming Environment | Unico | Unico |
| Supplier Device Package | - | SOT-23-6, 6-UDFN (2x2) |
| Test Condition | - | 0°C ~ 85°C, -40°C ~ 125°C |
| Type | Sensor | Sensor |
| Utilized IC / Part | STTS751 | STTS751 |
| Voltage - Supply | - | 3.6 V |
| Voltage - Supply | - | 2.25 V |
STTS751 Series
SENSOR DIGITAL -40C-125C SOT23-6
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Sensor Type | Resolution | Sensing Temperature - Local [Max] | Sensing Temperature - Local [Min] | Test Condition | Package / Case | Supplier Device Package | Accuracy - Highest (Lowest) [Max] | Accuracy - Highest (Lowest) [Min] | Output Type | Voltage - Supply [Max] | Voltage - Supply [Min] | Mounting Type | Suggested Programming Environment | Function | Contents | Type | Interconnect System | Platform | Utilized IC / Part |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
STMicroelectronics STTS751-1WB3F | 125 °C | -40 °C | Digital, Local | 11 b | 125 °C | -40 °C | -40°C ~ 125°C, 0°C ~ 85°C | SOT-23-6 | SOT-23-6 | 1.5 °C | 2.5 °C | SMBus | 3.6 V | 2.25 V | Surface Mount | |||||||
STMicroelectronics STEVAL-MKI198V1K | Unico | Temperature | Board(s) | Sensor | DIL24 | Professional MEMS Tool | STTS751 | |||||||||||||||
STMicroelectronics STTS751-0DP3F | 125 °C | -40 °C | Digital, Local | 11 b | 125 °C | -40 °C | -40°C ~ 125°C, 0°C ~ 85°C | 6-UDFN | 6-UDFN (2x2) | 1.5 °C | 2.5 °C | SMBus | 3.6 V | 2.25 V | Surface Mount |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
STTS751 Series

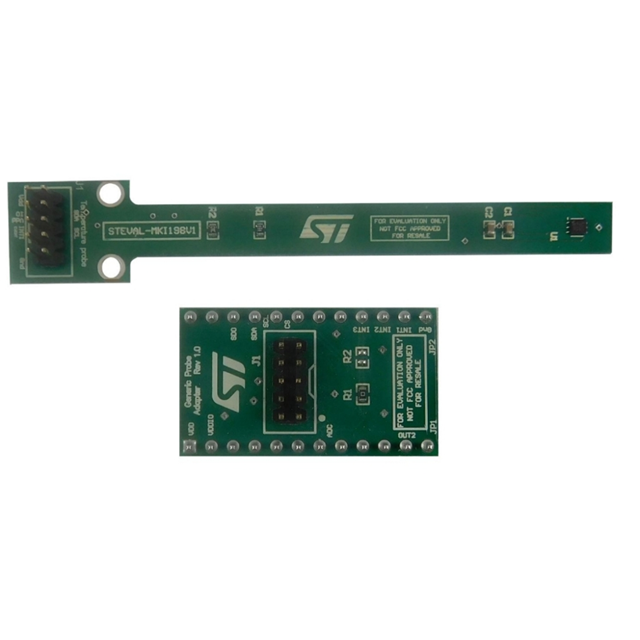

STEVAL-MKI198V1K is a temperature probe kit based on STTS751 temperature sensor. This evaluation kit consists of a probe with the STTS751 temperature sensor connected via flat cable to the STEVAL-MKIGIBV1 adapter board, so it can interface with the STEVAL-MKI109V3 motherboard. The device small package dimensions allow it to be mounted on top of a very thin probe, so it can take temperature readings not influenced by heat from other electronic components or boards. The STEVAL-MKIGIBV1 can be plugged into a standard DIL24 socket. The kit provides the complete STTS751 pinout and comes ready-to-use with the required decoupling capacitors on the VDD power supply line. The STEVAL-MKI109V3 motherboards feature a high performance 32bit microcontroller functioning as a bridge between the sensor and a PC running the free Unico GUI graphical user interface or dedicated software routines for customized applications.
