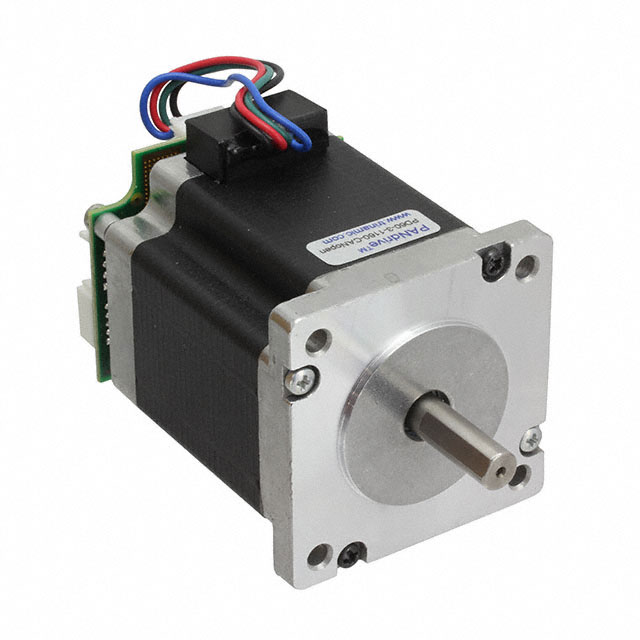

PD60-3-1160-CANOPEN
ActiveAnalog Devices Inc./Maxim Integrated
STEPPER MOTOR HYBRID BIPOLAR 48V
Deep-Dive with AI
Search across all available documentation for this part.
PD60-3-1160-CANOPEN
ActiveAnalog Devices Inc./Maxim Integrated
STEPPER MOTOR HYBRID BIPOLAR 48V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | PD60-3-1160-CANOPEN | PD60-3 Series |
|---|---|---|
| Accuracy | - | Ý5% |
| Coil Resistance | - | 1.2 Ohms |
| Coil Type | Bipolar | Bipolar |
| Current Rating (Amps) | 2.8 A | 2.8 A |
| Diameter - Shaft [diameter] | 0.315 in | 0.315 in |
| Diameter - Shaft [diameter] | 8 mm | 8 mm |
| Features | Flatted Shaft, Integrated Controller | Flatted Shaft, Integrated Controller |
| Length - Shaft and Bearing [x] | 24 mm | 24 mm |
| Length - Shaft and Bearing [x] | 0.945 in | 0.945 in |
| Mounting Hole Spacing | 47.14 mm | 47.14 mm |
| Mounting Hole Spacing | 1.856 in | 1.856 in |
| NEMA Frame Size | 24 | 24 |
| Operating Temperature | - | 50 °C |
| Operating Temperature | - | -20 C |
| Rotor Inertia | - | 570 gcm˛ |
| Size / Dimension [x] | 2.362 in | 2.362 in |
| Size / Dimension [x] | 60 mm | 60 mm |
| Size / Dimension [y] | 2.362 in | 2.362 in |
| Size / Dimension [y] | 60 mm | 60 mm |
| Step Angle | 1.8 ° | 1.8 ° |
| Step Angle | - | 1.8¯ |
| Steps per Revolution | 200 | 200 |
| Torque - Holding (oz-in / mNm) | 2100 mNm | 2100 mNm |
| Torque - Holding (oz-in / mNm) | 297.38 oz-in | 297.38 - 297.4 oz-in |
| Type | Hybrid | Hybrid |
| Voltage - Rated | - | 3.36 - 4.6 VDC |
| Voltage - Rated [custom] | 48 VDC | 48 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Case | 1 | $ 332.71 | |
PD60-3 Series
PANDRIVE NEMA24, 48V, 2.10NM
| Part | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Mounting Hole Spacing | Mounting Hole Spacing | Operating Temperature [Max] | Operating Temperature [Min] | Coil Type | Current Rating (Amps) | NEMA Frame Size | Steps per Revolution | Length - Shaft and Bearing [x] | Length - Shaft and Bearing [x] | Features | Type | Step Angle | Voltage - Rated | Diameter - Shaft [diameter] | Diameter - Shaft [diameter] | Torque - Holding (oz-in / mNm) | Torque - Holding (oz-in / mNm) | Rotor Inertia | Coil Resistance | Accuracy | Step Angle | Voltage - Rated [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Analog Devices Inc./Maxim Integrated PD60-3-1260-TMCL | 2.362 in | 2.362 in | 60 mm | 60 mm | 47.14 mm | 1.856 in | 50 °C | -20 C | Bipolar | 2.8 A | 24 | 200 | 24 mm | 0.945 in | Flatted Shaft, Integrated Controller | Hybrid | 1.8 ° | 4.6 VDC | 0.315 in | 8 mm | 2100 mNm | 297.38 oz-in | 570 gcm˛ | ||||
Analog Devices Inc./Maxim Integrated PD60-3-1378-CANOPEN | 2.362 in | 2.362 in | 60 mm | 60 mm | 50 °C | -20 C | Bipolar | 2.8 A | 24 | 200 | Flatted Shaft, Integrated Controller | Hybrid | 3.36 VDC | 2100 mNm | 297.4 oz-in | 570 gcm˛ | 1.2 Ohms | Ý5% | 1.8¯ | ||||||||
Analog Devices Inc./Maxim Integrated PD60-3-1260-CANOPEN | 2.362 in | 2.362 in | 60 mm | 60 mm | 47.14 mm | 1.856 in | 50 °C | -20 C | Bipolar | 2.8 A | 24 | 200 | 24 mm | 0.945 in | Flatted Shaft, Integrated Controller | Hybrid | 1.8 ° | 4.6 VDC | 0.315 in | 8 mm | 2100 mNm | 297.38 oz-in | 570 gcm˛ | ||||
Analog Devices Inc./Maxim Integrated PD60-3-1160-CANOPEN | 2.362 in | 2.362 in | 60 mm | 60 mm | 47.14 mm | 1.856 in | Bipolar | 2.8 A | 24 | 200 | 24 mm | 0.945 in | Flatted Shaft, Integrated Controller | Hybrid | 1.8 ° | 0.315 in | 8 mm | 2100 mNm | 297.38 oz-in | 48 VDC | |||||||
Analog Devices Inc./Maxim Integrated PD60-3-1276-CANOPEN | 2.362 in | 2.362 in | 60 mm | 60 mm | 50 °C | -20 C | Bipolar | 2.8 A | 24 | 200 | Flatted Shaft, Integrated Controller | Hybrid | 1.8 ° | 3.36 VDC | 2100 mNm | 297.38 oz-in | 570 gcm˛ | 1.2 Ohms | |||||||||
Analog Devices Inc./Maxim Integrated PD60-3-1160-TMCL | 2.362 in | 2.362 in | 60 mm | 60 mm | 47.14 mm | 1.856 in | Bipolar | 2.8 A | 24 | 200 | 24 mm | 0.945 in | Flatted Shaft, Integrated Controller | Hybrid | 1.8 ° | 0.315 in | 8 mm | 2100 mNm | 297.38 oz-in | 48 VDC | |||||||
Analog Devices Inc./Maxim Integrated PD60-3-1378-TMCL | 2.362 in | 2.362 in | 60 mm | 60 mm | 50 °C | -20 C | Bipolar | 2.8 A | 24 | 200 | Flatted Shaft, Integrated Controller | Hybrid | 1.8 ° | 3.36 VDC | 2100 mNm | 297.4 oz-in | 570 gcm˛ | 1.2 Ohms | |||||||||
Analog Devices Inc./Maxim Integrated PD60-3-1276-TMCL | 2.362 in | 2.362 in | 60 mm | 60 mm | 50 °C | -20 C | Bipolar | 2.8 A | 24 | 200 | Flatted Shaft, Integrated Controller | Hybrid | 1.8 ° | 3.36 VDC | 2100 mNm | 297.38 oz-in | 570 gcm˛ | 1.2 Ohms |
Description
General part information
PD60-3 Series
Bipolar Stepper Motor Hybrid Frame Size 24 200.0 Step 2.8 A 48VDC
