25020 BK199

Active

ALPHA WIRE

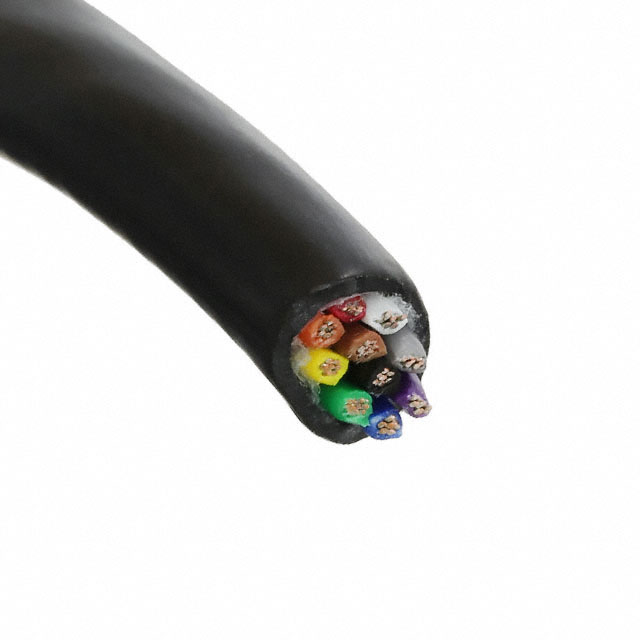

CABLE 10COND 24AWG BLACK 1000'

Search across all available documentation for this part.

Active

ALPHA WIRE

CABLE 10COND 24AWG BLACK 1000'

Technical Specifications

Parameters and characteristics for this part

Specification	25020 BK199

Cable Type	Multi-Conductor
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	32 AWG
Conductor Strand [custom]	7
Features	Rip Cord, Biological Compatibility
Jacket (Insulation) Diameter [diameter]	6.2 mm
Jacket (Insulation) Diameter [diameter]	0.244 in
Jacket (Insulation) Material	Polyurethane (PU)
Jacket Color	Black
Length	1000 ft
Length	304.8 m
Number of Conductors	10
Operating Temperature [Max]	90 °C
Operating Temperature [Min]	-30 ░C
Ratings	UL Style 20668, ISO 10993
Voltage	300 V
Wire Gauge	24 AWG

CABLE 10COND 24AWG BLACK 1000'

Part	Features	Ratings	Conductor Material	Wire Gauge	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Conductor Strand [custom]	Conductor Strand [custom]	Length	Length	Number of Conductors	Conductor Insulation	Jacket (Insulation) Material	Operating Temperature [Min]	Operating Temperature [Max]	Cable Type	Voltage	Jacket Color
ALPHA WIRE 25020 BK199	Biological Compatibility, Rip Cord	ISO 10993, UL Style 20668	Copper, Tinned	24 AWG	6.2 mm	0.244 in	32 AWG	7	1000 ft	304.8 m	10	Poly-Vinyl Chloride (PVC)	Polyurethane (PU)	-30 ░C	90 °C	Multi-Conductor	300 V	Black

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1000	$ 5.29

General part information

10 Conductor Multi-Conductor Cable Black 24 AWG 1000.0' (304.8m)
