AMJH-6-T-R-P10
ActiveAssmann WSW Components
MODULAR, RJ12, 1.27MM, 6PIN
AMJH-6-T-R-P10
ActiveAssmann WSW Components
MODULAR, RJ12, 1.27MM, 6PIN
Description
General part information
AMJH-6-T-R-P10

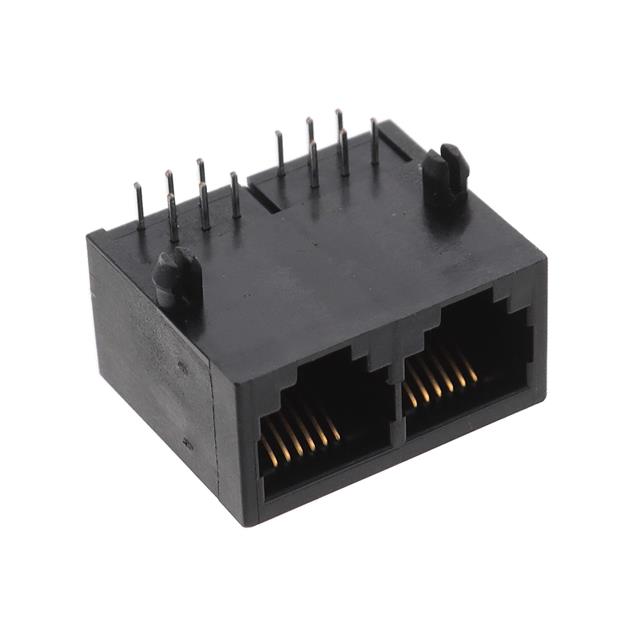

Jack Modular Connector 6p6c (RJ11, RJ12, RJ14, RJ25) 90° Angle (Right) Unshielded
Technical Specifications
Parameters and characteristics for this part
| Specification | AMJH-6-T-R-P10 |
|---|---|
| Connector Type | RJ25, RJ11, RJ12, RJ14, Jack |
| Contact Finish | Gold |
| Contact Finish Thickness | 50 µin |
| Contact Material | Phosphor Bronze |
| Housing Material | PBT, Polybutylene Terephthalate |
| LED Color | Does Not Contain LED |
| Mounting Type | Through Hole |
| Number of Contacts | 6 |
| Number of Ports | 2 |
| Number of Positions | 6 |
| Number of Rows | 1 |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Orientation Angle | 90 ° |
| Orientation Direction | Right |
| Shielding | Unshielded |
| Tab Direction | Down |
| Termination | Solder |
