ERM5-075-02.0-L-DV-P-TR

Active

Samtec Inc.

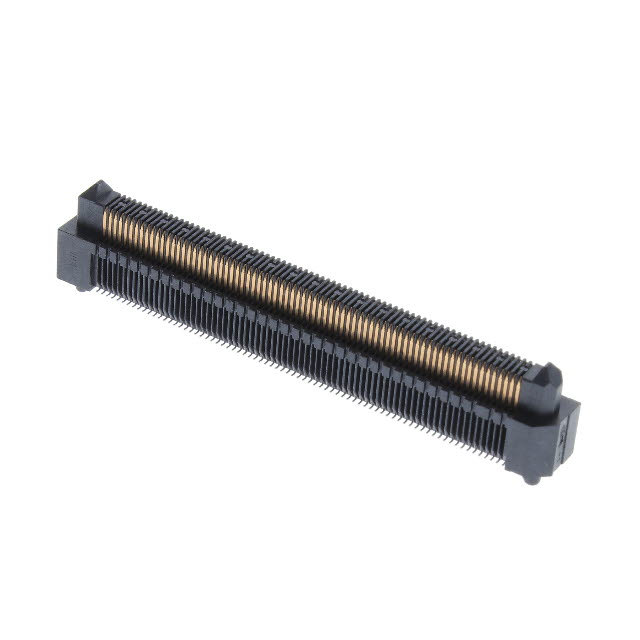

CONN HDR 150POS SMD GOLD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

ERM5-075-02.0-L-DV-P-TR

Active

Samtec Inc.

CONN HDR 150POS SMD GOLD

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	ERM5-075-02.0-L-DV-P-TR

Connector Type	Header, Outer Shroud Contacts
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Features	Pick and Place, Board Guide
Height Above Board	4.85 mm
Height Above Board	0.191 in
Mated Stacking Heights	7 mm, 9 mm
Mounting Type	Surface Mount
Number of Positions	150
Number of Rows	2
Pitch [x]	0.5 mm
Pitch [x]	0.02 in

ERM5-075 Series

Part	Number of Rows	Contact Finish	Connector Type	Height Above Board	Height Above Board	Contact Finish Thickness	Contact Finish Thickness	Pitch [x]	Pitch [x]	Mated Stacking Heights	Number of Positions	Features	Mounting Type
Samtec Inc. ERM5-075-05.0-L-DV-WT-TR	2	Gold	Header Outer Shroud Contacts	0.309 in	7.85 mm	10 Áin	0.25 Ám	0.5 mm	0.02 in	10 mm 12 mm	150	Board Guide Solder Retention	Surface Mount
Samtec Inc. ERM5-075-04.0-L-DV-K-TR	2	Gold	Header Outer Shroud Contacts	0.27 in	6.85 mm	10 Áin	0.25 Ám	0.5 mm	0.02 in	9 mm 11 mm	150	Board Guide Pick and Place	Surface Mount
Samtec Inc. ERM5-075-02.0-L-DV-P-TR	2	Gold	Header Outer Shroud Contacts	0.191 in	4.85 mm	10 Áin	0.25 Ám	0.5 mm	0.02 in	7 mm 9 mm	150	Board Guide Pick and Place	Surface Mount
Samtec Inc. ERM5-075-04.0-L-DV-WT-TR	2	Gold	Header Outer Shroud Contacts	0.27 in	6.85 mm	10 Áin	0.25 Ám	0.5 mm	0.02 in	9 mm 11 mm	150	Board Guide Solder Retention	Surface Mount
Samtec Inc. ERM5-075-02.0-L-DV-SPECIALBODIES	2	Gold	Header Outer Shroud Contacts	0.191 in	4.85 mm	10 Áin	0.25 Ám	0.5 mm	0.02 in	7 mm 9 mm	150		Surface Mount
Samtec Inc. ERM5-075-02.0-S-DV-TR	2	Gold	Header Outer Shroud Contacts	0.191 in	4.85 mm	30 Áin	0.76 Ám	0.5 mm	0.02 in	7 mm 9 mm	150	Board Guide	Surface Mount
Samtec Inc. ERM5-075-05.0-L-DV-TR	2	Gold	Header Outer Shroud Contacts	0.309 in	7.85 mm	10 Áin	0.25 Ám	0.5 mm	0.02 in	10 mm 12 mm	150	Board Guide	Surface Mount
Samtec Inc. ERM5-075-05.0-S-DV-TR	2	Gold	Header Outer Shroud Contacts	0.309 in	7.85 mm	30 Áin	0.76 Ám	0.5 mm	0.02 in	10 mm 12 mm	150	Board Guide	Surface Mount
Samtec Inc. ERM5-075-02.0-L-DV-TR	2	Gold	Header Outer Shroud Contacts	0.191 in	4.85 mm	10 Áin	0.25 Ám	0.5 mm	0.02 in	7 mm 9 mm	150	Board Guide	Surface Mount
