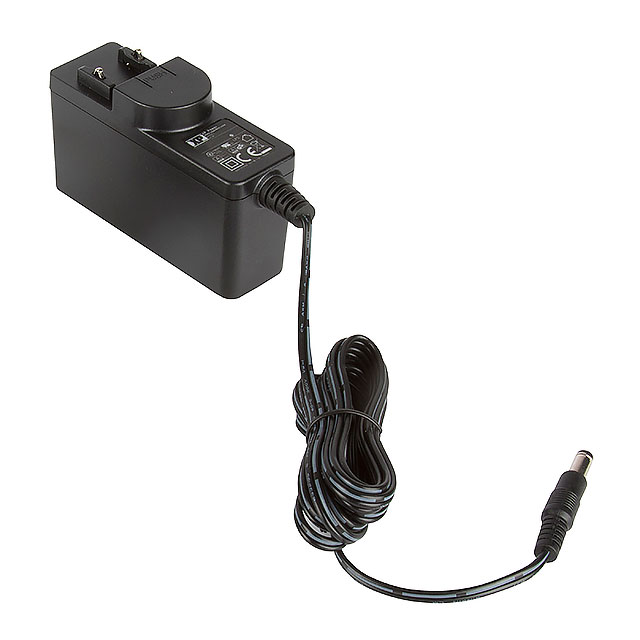

ACM12US18

Active

XP Power

AC/DC POWER SUPPLY, ITE & MEDICAL, 1 OUTPUT, 12 W, 18 V, 666 MA

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Technical Data Sheet EN

ACM12US18

Active

XP Power

AC/DC POWER SUPPLY, ITE & MEDICAL, 1 OUTPUT, 12 W, 18 V, 666 MA

Deep-Dive with AI

DocumentsDatasheet Technical Data Sheet EN

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1000	$ 12.24
Newark	Each	100	$ 12.24

Description

General part information

ACM12 Series

The ACM12 series of wall plug adaptors comply with the latest energy efficiency level VI standards with high active mode efficiency and extremely low no load power consumption. Available with a standard jack plug connector these adaptors suit a wide variety of cost sensitive industrial and medical applications while maintaining industry leading performance.

Specification	ACM12US18	ACM12 Series

Applications	ITE (Commercial), Medical	ITE (Commercial), Medical
Approval Agency	CB, CE, TUV, UL	CB, CE, TUV, UL
Cord Length	1.5 m	1.5 m
Cord Length	59 in	59 in
Current - Output (Max) [Max]	666 mA	1 - 666 mA
Efficiency	CoC Tier 2, Level VI	CoC Tier 2, Level VI
Form	Wall Mount (Class II)	Wall Mount (Class II)
Input Connector	Multi-Blade	Multi-Blade
Input Type	Multi-Blade (Sold Separately)	Multi-Blade (Sold Separately)
No Load Power Consumption [Max]	75 mW	75 mW
Operating Temperature [Max]	60 °C	60 °C
Operating Temperature [Min]	-5 °C	-5 °C
Output Connector	Barrel Plug	Barrel Plug
Output Connector [diameter]	5.5 mm, 2.5 mm	2.5 - 5.5 mm
Output Connector [x]	11 mm	11 mm
Power (Watts)	12 W	12 W
Region Utilized	International	International
Size / Dimension [x]	2.99 in	2.99 in
Size / Dimension [x]	75.9 mm	75.9 mm
Size / Dimension [y]	30.2 mm	30.2 mm
Size / Dimension [y]	1.19 "	1.19 "
Size / Dimension [z]	1.9 in	1.9 in
Size / Dimension [z]	48.3 mm	48.3 mm
Standard Number	60601-1, 62368-1	60601-1, 62368-1
Voltage - Input [Max]	264 VAC	264 VAC
Voltage - Input [Min]	90 VAC	90 VAC
Voltage - Output	18 V	12 - 18 V

Part	Cord Length	Cord Length	Power (Watts)	Approval Agency	No Load Power Consumption [Max]	Input Connector	Voltage - Output	Form	Region Utilized	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Operating Temperature [Min]	Operating Temperature [Max]	Standard Number	Current - Output (Max) [Max]	Efficiency	Input Type	Output Connector	Output Connector [diameter]	Output Connector [x]	Voltage - Input [Min]	Voltage - Input [Max]	Applications
XP Power ACM12US18	1.5 m	59 in	12 W	CB, CE, TUV, UL	75 mW	Multi-Blade	18 V	Wall Mount (Class II)	International	1.9 in	2.99 in	30.2 mm	1.19 "	48.3 mm	75.9 mm	-5 °C	60 °C	60601-1, 62368-1	666 mA	CoC Tier 2, Level VI	Multi-Blade (Sold Separately)	Barrel Plug	2.5 mm, 5.5 mm	11 mm	90 VAC	264 VAC	ITE (Commercial), Medical
XP Power ACM12US12	1.5 m	59 in	12 W	CB, CE, TUV, UL	75 mW	Multi-Blade	12 V	Wall Mount (Class II)	International	1.9 in	2.99 in	30.2 mm	1.19 "	48.3 mm	75.9 mm	-5 °C	60 °C	60601-1, 62368-1	1 A	CoC Tier 2, Level VI	Multi-Blade (Sold Separately)	Barrel Plug	2.5 mm, 5.5 mm	11 mm	90 VAC	264 VAC	ITE (Commercial), Medical
