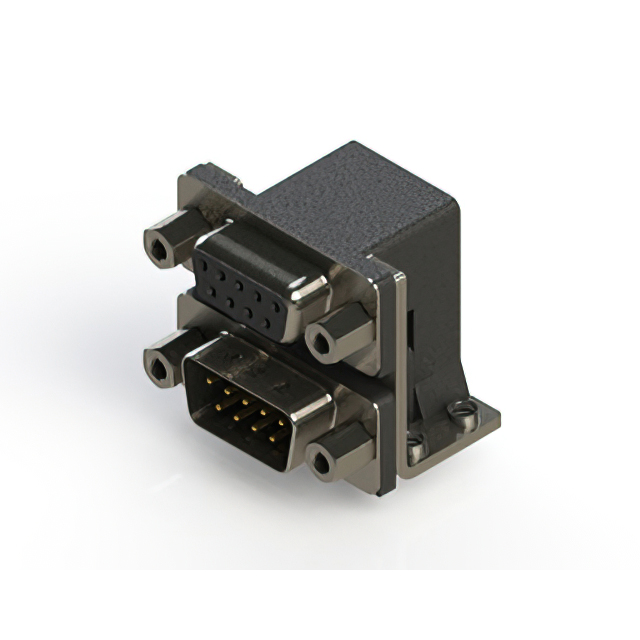

664-009-664-053
ActiveEDAC Inc.
RIGHT-ANGLE DUAL PORT D-SUB CONNECTOR ROHS COMPLIANT: YES
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
664-009-664-053
ActiveEDAC Inc.
RIGHT-ANGLE DUAL PORT D-SUB CONNECTOR ROHS COMPLIANT: YES
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 664-009-664-053 |
|---|---|
| Backset Spacing | 8.08 mm |
| Backset Spacing | 0.318 " |
| Color | Black |
| Connector Style | D-Sub - Stacked |
| Connector Type | Plug, Male Pins, Receptacle, Female Socket |
| Contact Finish | Gold |
| Contact Finish Thickness | 0.76 Ám |
| Contact Finish Thickness | 30 Áin |
| Contact Material | Brass, Phosphor Bronze |
| Contact Type | Signal |
| Current Rating (Amps) | 3 A |
| Dielectric Material | Polyester Thermoplastic |
| Features | Grounding Indents, Mounting Brackets, Shielded |
| Flange Feature | Female Screwlock (4-40), Mating Side |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 9 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -55 °C |
| Shell Material, Finish | Nickel Plated, Steel |
| Shell Size, Connector Layout | 1 (DE, E) |
| Termination | Solder |
664-009 Series
...
| Part | Number of Rows | Backset Spacing | Backset Spacing | Shell Material, Finish | Dielectric Material | Connector Style | Operating Temperature [Max] | Operating Temperature [Min] | Current Rating (Amps) | Color | Contact Finish Thickness | Contact Finish Thickness | Termination | Mounting Type | Connector Type | Contact Finish | Material Flammability Rating | Contact Type | Features | Number of Positions | Contact Material | Shell Size, Connector Layout | Flange Feature | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | 2 | 8.08 mm | 0.318 " | Nickel Plated Steel | Polyester Thermoplastic | D-Sub - Stacked | 85 °C | -55 °C | 3 A | Black | 15 µin | 0.38 µm | Solder | Through Hole Right Angle | Plug Male Pins Receptacle Female Socket | Gold | UL94 V-0 | Signal | Grounding Indents Mounting Brackets Shielded | 9 | Brass Phosphor Bronze | 1 (DE E) | Housing/Shell (4-40) | |
EDAC Inc. | 2 | 8.08 mm | 0.318 " | Nickel Plated Steel | Polyester Thermoplastic | D-Sub - Stacked | 85 °C | -55 °C | 3 A | Black | 30 Áin | 0.76 Ám | Solder | Through Hole Right Angle | Plug Male Pins Receptacle Female Socket | Gold | UL94 V-0 | Signal | Board Lock Grounding Indents Mounting Brackets Shielded | 9 | Brass Phosphor Bronze | 1 (DE E) | Housing/Shell (4-40) | |
EDAC Inc. | 2 | 8.08 mm | 0.318 " | Nickel Plated Steel | Polyester Thermoplastic | D-Sub - Stacked | 85 °C | -55 °C | 3 A | Black | 30 Áin | 0.76 Ám | Solder | Through Hole Right Angle | Plug Male Pins Receptacle Female Socket | Gold | UL94 V-0 | Signal | Board Lock Grounding Indents Mounting Brackets Shielded | 9 | Brass Phosphor Bronze | 1 (DE E) | Housing/Shell (Unthreaded) | |
EDAC Inc. | 2 | 8.08 mm | 0.318 " | Nickel Plated Steel | Polyester Thermoplastic | D-Sub - Stacked | 85 °C | -55 °C | 3 A | Black | 15 µin | 0.38 µm | Solder | Through Hole Right Angle | Plug Male Pins Receptacle Female Socket | Gold | UL94 V-0 | Signal | Grounding Indents Shielded | 9 | Brass Phosphor Bronze | 1 (DE E) | Housing/Shell (M3) | |
EDAC Inc. | 2 | 8.08 mm | 0.318 " | Nickel Plated Steel | Polyester Thermoplastic | D-Sub - Stacked | 85 °C | -55 °C | 3 A | Black | 30 Áin | 0.76 Ám | Solder | Through Hole Right Angle | Plug Male Pins Receptacle Female Socket | Gold | UL94 V-0 | Signal | Board Lock Grounding Indents Mounting Brackets Shielded | 9 | Brass Phosphor Bronze | 1 (DE E) | Female Screwlock (4-40) Mating Side | |
EDAC Inc. | 2 | 8.08 mm | 0.318 " | Nickel Plated Steel | Polyester Thermoplastic | D-Sub - Stacked | 85 °C | -55 °C | 3 A | Black | Solder | Through Hole Right Angle | Plug Male Pins Receptacle Female Socket | Gold | UL94 V-0 | Signal | Grounding Indents Shielded | 9 | Brass Phosphor Bronze | 1 (DE E) | Housing/Shell (4-40) | Flash | ||
EDAC Inc. | 2 | 8.08 mm | 0.318 " | Nickel Plated Steel | Polyester Thermoplastic | D-Sub - Stacked | 85 °C | -55 °C | 3 A | Black | 15 µin | 0.38 µm | Solder | Through Hole Right Angle | Plug Male Pins Receptacle Female Socket | Gold | UL94 V-0 | Signal | Grounding Indents Mounting Brackets Shielded | 9 | Brass Phosphor Bronze | 1 (DE E) | Housing/Shell (Unthreaded) | |
EDAC Inc. | 2 | 8.08 mm | 0.318 " | Nickel Plated Steel | Polyester Thermoplastic | D-Sub - Stacked | 85 °C | -55 °C | 3 A | Black | 30 Áin | 0.76 Ám | Solder | Through Hole Right Angle | Plug Male Pins Receptacle Female Socket | Gold | UL94 V-0 | Signal | Grounding Indents Mounting Brackets Shielded | 9 | Brass Phosphor Bronze | 1 (DE E) | Female Screwlock (4-40) Mating Side | |
EDAC Inc. | 2 | 8.08 mm | 0.318 " | Nickel Plated Steel | Polyester Thermoplastic | D-Sub - Stacked | 85 °C | -55 °C | 3 A | Black | Solder | Through Hole Right Angle | Plug Male Pins Receptacle Female Socket | Gold | UL94 V-0 | Signal | Board Lock Grounding Indents Mounting Brackets Shielded | 9 | Brass Phosphor Bronze | 1 (DE E) | Female Screwlock (4-40) Mating Side | Flash | ||
EDAC Inc. | 2 | 8.08 mm | 0.318 " | Nickel Plated Steel | Polyester Thermoplastic | D-Sub - Stacked | 85 °C | -55 °C | 3 A | Black | 15 µin | 0.38 µm | Solder | Through Hole Right Angle | Plug Male Pins Receptacle Female Socket | Gold | UL94 V-0 | Signal | Grounding Indents Shielded | 9 | Brass Phosphor Bronze | 1 (DE E) | Housing/Shell (Unthreaded) |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
664-009 Series
9, 9 Position D-Sub - Stacked Receptacle, Female Socket ; Plug, Male Pins Connector
