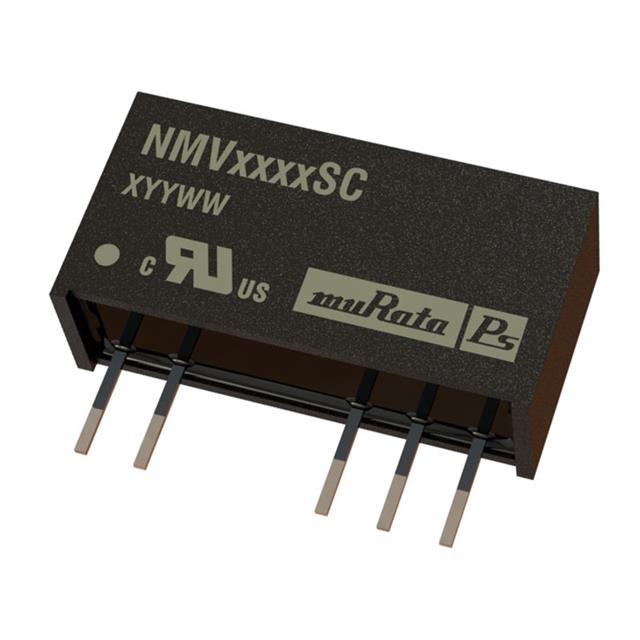

NMV1212SC - NMV1212SC

NMV1212SC

Active
Murata Power Solutions Inc.

ISOLATED THROUGH HOLE DC/DC CONVERTER, ITE, SIP, 1:1, 1 W, 2 OUTPUT, 12 V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsProduct Change Notice ENTechnical Data Sheet EN+1
NMV1212SC - NMV1212SC

NMV1212SC

Active
Murata Power Solutions Inc.

ISOLATED THROUGH HOLE DC/DC CONVERTER, ITE, SIP, 1:1, 1 W, 2 OUTPUT, 12 V

Deep-Dive with AI

DocumentsProduct Change Notice ENTechnical Data Sheet EN+1

Technical Specifications

Parameters and characteristics commom to parts in this series

SpecificationNMV1212SCNMV12 Series
Applications-ITE (Commercial)
Current - Output (Max)-42 - 200 mA
Current - Output (Max)-42 mA
Current - Output (Max)-33 - 100 mA
Current - Output (Max)-100 mA
Efficiency-69 - 77 %
Mounting Type-Through Hole
null-
Number of Outputs-1 - 2
Operating Temperature-85 °C
Operating Temperature--40 °C
Package / Case-14-DIP Module, 6 Leads, 7-SIP Module, 5 Leads, 7-SIP Module, 4 Leads
Size / Dimension-0.77 - 19.6 in
Size / Dimension-0.27 - 6.9 "
Size / Dimension-0.39 - 9.9 "
Size / Dimension-6 mm
Size / Dimension-0.39 in
Size / Dimension-10 mm
Size / Dimension-0.24 in
Size / Dimension-19.5 mm
Size / Dimension-0.77 "
Type-Isolated Module
Voltage - Input (Max)-13.2 V
Voltage - Input (Min)-10.8 V
Voltage - Isolation-3000 V
Voltage - Output 1-5 - 15 V
Voltage - Output 2--15 - -5 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyTube 1$ 10.15
5$ 10.10
10$ 10.03
25$ 9.92
50$ 9.67
100$ 9.19
250$ 8.60
500$ 8.02
1000$ 7.51
NewarkEach 25$ 10.94
50$ 10.68
100$ 10.18

NMV12 Series

ISOLATED THROUGH HOLE DC/DC CONVERTER, ITE, DIP, 1:1, 1 W, 2 OUTPUT, 15 V

PartTypePackage / CaseOperating Temperature [Max]Operating Temperature [Min]Size / Dimension [x]Size / Dimension [z]Size / Dimension [y]Voltage - IsolationVoltage - Output 1Number of OutputsApplicationsVoltage - Input (Min) [Min]Mounting TypeCurrent - Output (Max) [Max]Voltage - Input (Max) [Max]EfficiencyVoltage - Output 2Current - Output (Max) [Max]Size / Dimension [y]Size / Dimension [z]Size / Dimension [z]Size / Dimension [y]Size / Dimension [x]Size / Dimension [x]Current - Output (Max)Current - Output (Max)
Murata Power Solutions Inc.
NMV1215DC
Murata Power Solutions Inc.
NMV1205DAC
Isolated Module
14-DIP Module, 6 Leads
85 °C
-40 °C
0.77 in, 19.6 mm
0.27 ", 6.9 mm
0.39 ", 9.9 mm
3000 V
5 V
1
ITE (Commercial)
10.8 V
Through Hole
200 mA
13.2 V
69 %
Murata Power Solutions Inc.
NMV1215SAC
Murata Power Solutions Inc.
NMV1212DC
Murata Power Solutions Inc.
NMV1205SAC
Murata Power Solutions Inc.
NMV1212DC
Isolated Module
14-DIP Module, 6 Leads
85 °C
-40 °C
0.77 in, 19.6 mm
0.27 ", 6.9 mm
0.39 ", 9.9 mm
3000 V
12 V
2
ITE (Commercial)
10.8 V
Through Hole
42 mA
13.2 V
75 %
-12 V
42 mA
Murata Power Solutions Inc.
NMV1212SC
Murata Power Solutions Inc.
NMV1212DAC
Isolated Module
14-DIP Module, 6 Leads
85 °C
-40 °C
0.77 in, 19.6 mm
0.27 ", 6.9 mm
0.39 ", 9.9 mm
3000 V
12 V
1
ITE (Commercial)
10.8 V
Through Hole
84 mA
13.2 V
77 %
Murata Power Solutions Inc.
NMV1215SC
Isolated Module
7-SIP Module, 5 Leads
85 °C
-40 °C
3000 V
15 V
2
ITE (Commercial)
10.8 V
Through Hole
13.2 V
76 %
-15 V
6 mm
0.39 in
10 mm
0.24 in
19.5 mm
0.77 "
33 mA
Murata Power Solutions Inc.
NMV1205SAC
Isolated Module
7-SIP Module, 4 Leads
85 °C
-40 °C
3000 V
5 V
1
ITE (Commercial)
10.8 V
Through Hole
200 mA
13.2 V
69 %
6 mm
0.39 in
10 mm
0.24 in
19.5 mm
0.77 "

Description

General part information

NMV12 Series

The NMV1212SC is a 2-output 1W board-mount isolated DC/DC Converter for on-board distributed power systems. It is ideally suited for providing local supplies on control system boards with the added benefit of 3kVDC galvanic isolation to reduce switching noise. The rated power may be drawn from a single pin provided the total load does not exceed 1W.
