Description
General part information

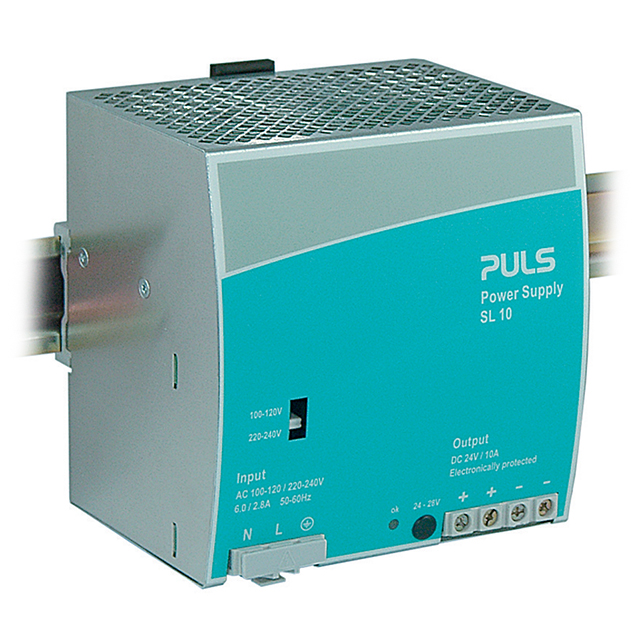

SL10.105
AC/DC DIN RAIL SUPPLY 24V 240W
Technical Specifications
Parameters and characteristics for this part
| Specification | SL10.105 |
|---|---|
| AC Voltage - Input (Max) (Range 1) | 132 VAC |
| AC Voltage - Input (Max) (Range 2) | 264 VAC |
| AC Voltage - Input (Min) (Range 1) | 85 VAC |
| AC Voltage - Input (Min) (Range 2) | 176 VAC |
| Applications | ITE (Commercial) |
| Approval Agency | CE, cURus, cULus, CB |
| Current - Output (Max) | 10 A |
| Efficiency | 89.4 % |
| Features | PFC, Adjustable Output |
| Input Type | AC |
| Number of Outputs | 1 |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -25 °C |
| Power (Watts) | 240 W |
| Size / Dimension Height | 4.88 in |
| Size / Dimension Length | 4.02 in |
| Size / Dimension Width | 4.72 in |
| Voltage - Output 1 | 24 V |
