N2506-6V0C-RB-WD

Active

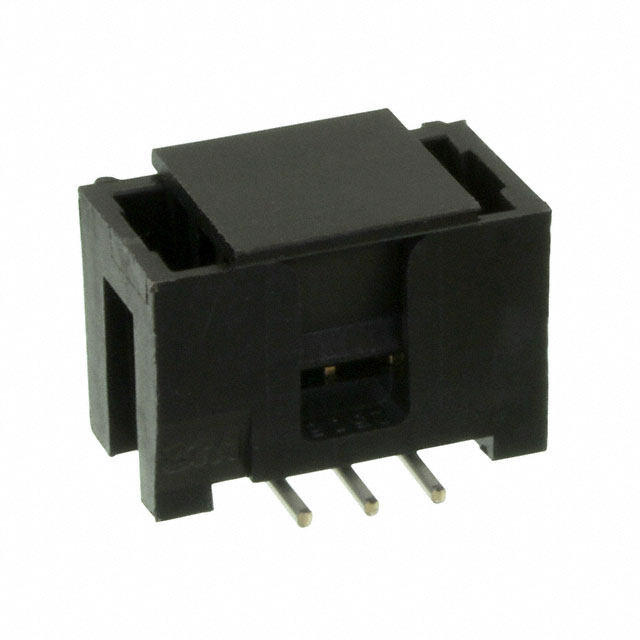

CONN SHROUDED HEADER (4 SIDES) HDR 6 POS 2.54MM SOLDER ST TOP ENTRY SMD T/R

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

N2506-6V0C-RB-WD

Active

CONN SHROUDED HEADER (4 SIDES) HDR 6 POS 2.54MM SOLDER ST TOP ENTRY SMD T/R

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	N2506-6V0C-RB-WD	N2506 Series

Connector Type	Header	Header
Contact Finish - Mating	Gold	Gold
Contact Finish - Post	Tin	Tin
Contact Finish Thickness - Mating	30 Áin	30 Áin
Contact Finish Thickness - Mating	0.76 Ám	0.76 Ám
Contact Finish Thickness - Post	200 µin	200 µin
Contact Finish Thickness - Post	5.08 µm	5.08 µm
Contact Length - Post	-	2.84 mm
Contact Length - Post	-	0.112 in
Contact Material	Copper Alloy	Copper Alloy
Contact Shape	Square	Square
Contact Type	Male Pin	Male Pin
Current Rating (Amps)	1.75 A	1.75 A
Fastening Type	Push-Pull	Push-Pull
Features	Pick and Place, Keying Slot	Keying Slot, Pick and Place
Insulation Color	Black	Black
Insulation Height	-	0.338 in
Insulation Height	-	8.59 mm
Insulation Height [z]	9.91 mm	9.91 mm
Insulation Height [z]	0.39 in	0.39 in
Insulation Material	Polycyclohexylenedimethylene Terephthalate (PCT), Glass Filled	Polyester, Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polycyclohexylenedimethylene Terephthalate (PCT), Glass Filled
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Surface Mount	Through Hole, Through Hole, Right Angle, Surface Mount
Number of Positions	6	6
Number of Positions Loaded	All	All
Number of Rows	2	2
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-55 °C	-55 °C
Pitch - Mating	0.1 in	0.1 in
Pitch - Mating	2.54 mm	2.54 mm
Row Spacing - Mating [x]	2.54 mm	2.54 mm
Row Spacing - Mating [x]	0.1 in	0.1 in
Shrouding	Shrouded - 4 Wall	Shrouded - 4 Wall
Style	Board to Board, Cable	Board to Board, Cable
Termination	Solder	Solder

N2506 Series

PIN HEADER, PCB HEADER, WIRE-TO-BOARD, 2.54 MM, 2 ROWS, 6 CONTACTS, THROUGH HOLE STRAIGHT

Part	Fastening Type	Insulation Material	Style	Mounting Type	Material Flammability Rating	Number of Positions Loaded	Features	Contact Shape	Current Rating (Amps)	Connector Type	Pitch - Mating	Pitch - Mating	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Finish - Post	Contact Length - Post	Contact Length - Post	Contact Material	Shrouding	Insulation Height [z]	Insulation Height [z]	Number of Rows	Termination	Contact Type	Number of Positions	Insulation Color	Operating Temperature [Max]	Operating Temperature [Min]	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish - Mating	Insulation Height	Insulation Height
3M N2506-6002RB	Push-Pull	Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester	Board to Board, Cable	Through Hole	UL94 V-0	All	Keying Slot	Square	1.75 A	Header	0.1 in	2.54 mm	200 µin	5.08 µm	Tin	2.84 mm	0.112 in	Copper Alloy	Shrouded - 4 Wall	9.91 mm	0.39 in	2	Solder	Male Pin	6	Black	105 ░C	-55 °C	2.54 mm	0.1 in	30 Áin	0.76 Ám	Gold
3M N2506-5002RB	Push-Pull	Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester	Board to Board, Cable	Through Hole, Right Angle	UL94 V-0	All	Keying Slot	Square	1.75 A	Header	0.1 in	2.54 mm	200 µin	5.08 µm	Tin	2.84 mm	0.112 in	Copper Alloy	Shrouded - 4 Wall			2	Solder	Male Pin	6	Black	105 ░C	-55 °C	2.54 mm	0.1 in	30 Áin	0.76 Ám	Gold	0.338 in	8.59 mm
3M N2506-6V0C-RB-WD	Push-Pull	Polycyclohexylenedimethylene Terephthalate (PCT), Glass Filled	Board to Board, Cable	Surface Mount	UL94 V-0	All	Keying Slot, Pick and Place	Square	1.75 A	Header	0.1 in	2.54 mm	200 µin	5.08 µm	Tin			Copper Alloy	Shrouded - 4 Wall	9.91 mm	0.39 in	2	Solder	Male Pin	6	Black	105 ░C	-55 °C	2.54 mm	0.1 in	30 Áin	0.76 Ám	Gold

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 4.35
		10	$ 3.70
		100	$ 3.14
	Digi-Reel®	1	$ 4.77
		10	$ 4.33
		100	$ 3.81
	Tape & Reel (TR)	200	$ 2.99
		400	$ 2.85
		600	$ 2.77
		1000	$ 2.67
		1400	$ 2.61
		2000	$ 2.54

Description

General part information

N2506 Series

Connector Header Surface Mount 6 position 0.100" (2.54mm)
