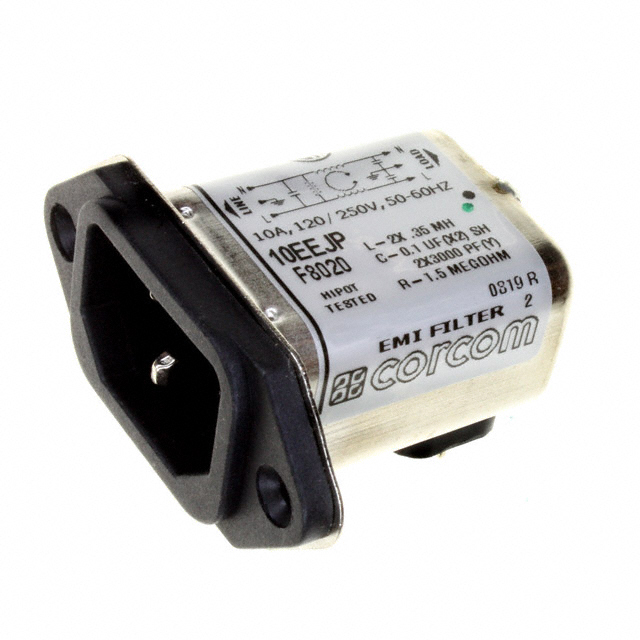

1-1609006-5

Obsolete

TE Connectivity Corcom Filters

PWR ENT RCPT IEC320-C14 PNL SLDR

Search across all available documentation for this part.

Obsolete

TE Connectivity Corcom Filters

PWR ENT RCPT IEC320-C14 PNL SLDR

Technical Specifications

Parameters and characteristics for this part

Specification	1-1609006-5

Accomodates a Fuse	False
Approval Agency	UL, VDE, CSA
Connector Style	IEC 320-C14
Connector Type	Male Blades, Receptacle
Current Rating - Appliance Inlet	10 A
Current Rating - Filter	10 A
Filter Type	Filtered (EMI, RFI) - Commercial
Mounting Type	Panel Mount, Flange, Through Hole, Right Angle
Panel Cutout Dimensions [x]	30.48 mm
Panel Cutout Dimensions [y]	22.86 mm
Termination	Solder
Voltage Rating - Appliance Inlet [Max]	250 VAC
Voltage Rating - Appliance Inlet [Min]	120 VAC

PWR ENT RCPT IEC320-C14 PNL SLDR

Part	Current Rating - Appliance Inlet	Termination	Connector Style	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]	Approval Agency	Filter Type	Mounting Type	Connector Type	Current Rating - Filter	Voltage Rating - Appliance Inlet [Max]	Voltage Rating - Appliance Inlet [Min]	Accomodates a Fuse
TE Connectivity Corcom Filters 1-1609006-5	10 A	Solder	IEC 320-C14	22.86 mm	30.48 mm	CSA, UL, VDE	Filtered (EMI, RFI) - Commercial	Panel Mount, Flange, Through Hole, Right Angle	Male Blades, Receptacle	10 A	250 VAC	120 VAC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Power Entry Connector Receptacle, Male Blades IEC 320-C14 Panel Mount, Flange; Through Hole, Right Angle
