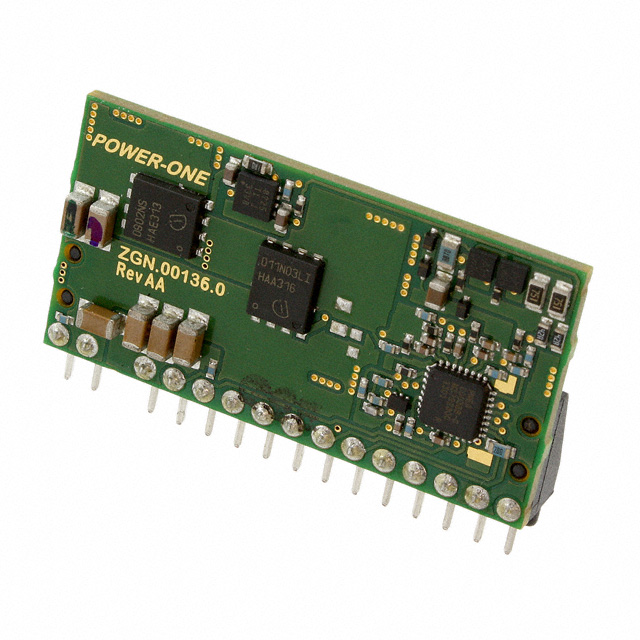

DP8120G-T100

Active

Bel Power Solutions

DC DC CONVERTER 0.7-5.5V

Search across all available documentation for this part.

Active

Bel Power Solutions

DC DC CONVERTER 0.7-5.5V

Technical Specifications

Parameters and characteristics for this part

Specification	DP8120G-T100

Applications	ITE (Commercial)
Current - Output (Max) [Max]	20 A
Mounting Type	Through Hole
Number of Outputs	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	16-SIP Module
Size / Dimension [x]	40.6 mm
Size / Dimension [x]	1.6 "
Size / Dimension [y]	0.41 in
Size / Dimension [y]	10.4 mm
Size / Dimension [z]	0.84 "
Size / Dimension [z]	21.3 mm
Type	Non-Isolated PoL Module, Digital
Voltage - Input (Max) [Max]	14 V
Voltage - Input (Min) [Min]	8 V
Voltage - Output 1 [Max]	5.5 V
Voltage - Output 1 [Min]	0.7 V

DC DC CONVERTER 0.7-5.5V

Part	Mounting Type	Current - Output (Max) [Max]	Voltage - Output 1 [Max]	Voltage - Output 1 [Min]	Type	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Voltage - Input (Max) [Max]	Number of Outputs	Voltage - Input (Min) [Min]	Applications
Bel Power Solutions DP8120G-T100	Through Hole	20 A	5.5 V	0.7 V	Non-Isolated PoL Module, Digital	0.84 "	21.3 mm	40.6 mm	0.41 in	1.6 "	10.4 mm	85 °C	-40 °C	16-SIP Module	14 V	1	8 V	ITE (Commercial)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Non-Isolated PoL Module, Digital DC DC Converter 1 Output 0.7 ~ 5.5V 20A 8V - 14V Input

Technical documentation and resources

No documents available
