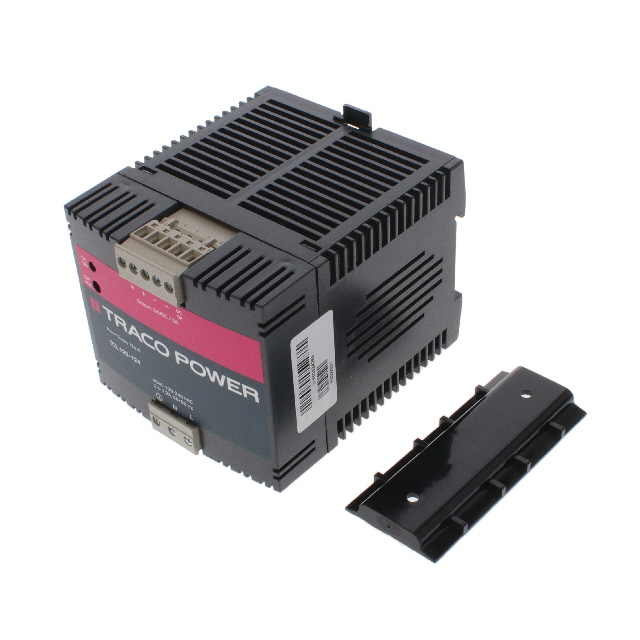

TCL 120-124
ActiveTraco Power
AC/DC DIN RAIL SUPPLY 24V 120W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
TCL 120-124
ActiveTraco Power
AC/DC DIN RAIL SUPPLY 24V 120W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | TCL 120-124 |
|---|---|
| AC Voltage - Input [Max] | 264 VAC |
| AC Voltage - Input [Min] | 85 VAC |
| Applications | Industrial, ITE (Commercial) |
| Approval Agency | cULus, CB, cCSAus, cURus, CE |
| Current - Output (Max) [Max] | 5 A |
| DC Voltage - Input (Max) [Max] | 375 V |
| DC Voltage - Input (Min) [Min] | 85 V |
| Efficiency | 88 % |
| Features | Adjustable Output, IP20 |
| Input Type | AC or DC |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -10 °C |
| Size / Dimension [x] | 3.94 in |
| Size / Dimension [x] | 100.1 mm |
| Size / Dimension [y] | 85.1 mm |
| Size / Dimension [y] | 3.35 in |
| Size / Dimension [z] | 2.95 " |
| Size / Dimension [z] | 74.9 mm |
| Voltage - Isolation | 3000 V |
| Voltage - Output 1 | 24 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 168.58 | |
| 10 | $ 148.17 | |||
| 25 | $ 140.75 | |||
| 50 | $ 135.39 | |||
| 100 | $ 125.38 | |||
Description
General part information
TCL 120 Series
AC/DC DIN RAIL SUPPLY 24V 120W
Documents
Technical documentation and resources
