928909-2
ActiveTE Connectivity AMP Connectors

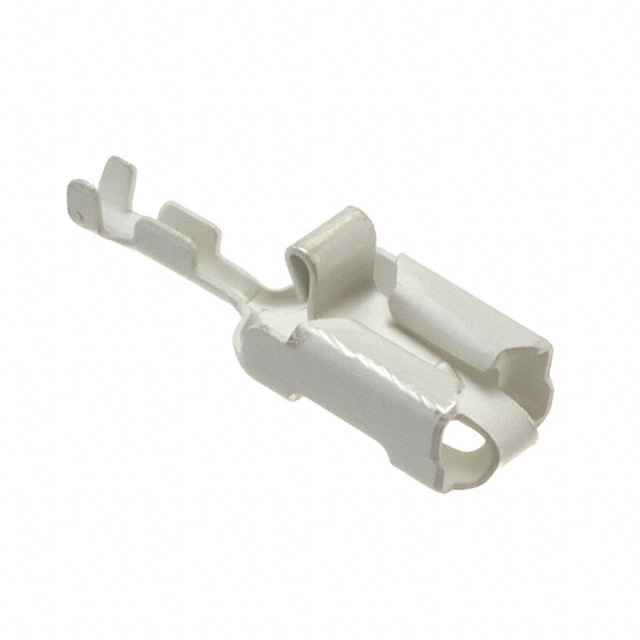

POSI LOCK RECP TN PLATE
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
928909-2
ActiveTE Connectivity AMP Connectors
POSI LOCK RECP TN PLATE
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 928909-2 | 928909 Series |
|---|---|---|
| Contact Finish | Tin | Tin, Nickel |
| Contact Material | Phosphor Bronze | Phosphor Bronze |
| Gender | Female | Female |
| Insulation | Non-Insulated | Non-Insulated |
| Length - Overall [x] | 0.878 in | 0.878 in |
| Length - Overall [x] | 22.3 mm | 22.3 mm |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Tab Thickness | 0.032 in | 0.032 in |
| Tab Thickness | 0.81 mm | 0.81 mm |
| Tab Width | 6.35 mm | 6.35 mm |
| Tab Width | 0.25 in | 0.25 in |
| Terminal Type | Standard | Standard |
| Termination | Crimp | Crimp |
928909 Series
POSI LOCK RECP TN PLATE
| Part | Terminal Type | Tab Width | Tab Width | Termination | Contact Finish | Length - Overall [x] | Length - Overall [x] | Contact Material | Mounting Type | Tab Thickness | Tab Thickness | Gender | Insulation |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 928909-2 | Standard | 6.35 mm | 0.25 in | Crimp | Tin | 0.878 in | 22.3 mm | Phosphor Bronze | Free Hanging (In-Line) | 0.032 in | 0.81 mm | Female | Non-Insulated |
TE Connectivity AMP Connectors 928909-3 | Standard | 6.35 mm | 0.25 in | Crimp | Nickel | 0.878 in | 22.3 mm | Phosphor Bronze | Free Hanging (In-Line) | 0.032 in | 0.81 mm | Female | Non-Insulated |
TE Connectivity AMP Connectors 928909-1 | Standard | 6.35 mm | 0.25 in | Crimp | 0.878 in | 22.3 mm | Phosphor Bronze | Free Hanging (In-Line) | 0.032 in | 0.81 mm | Female | Non-Insulated |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.44 | |
| 10 | $ 0.39 | |||
| 25 | $ 0.39 | |||
| 50 | $ 0.38 | |||
| 100 | $ 0.33 | |||
| 250 | $ 0.30 | |||
| 500 | $ 0.28 | |||
| Tape & Reel (TR) | 1500 | $ 0.24 | ||
| 3000 | $ 0.24 | |||
| 7500 | $ 0.22 | |||
| 10500 | $ 0.20 | |||
Description
General part information
928909 Series
0.250" (6.35mm) Quick Connect Female Crimp Connector Non-Insulated
