DB25M10TRS

Active

Switchcraft Inc.

CBL ASSY DSUB 25P M-6.35MM 10'

Search across all available documentation for this part.

Active

Switchcraft Inc.

CBL ASSY DSUB 25P M-6.35MM 10'

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 257.62

General part information

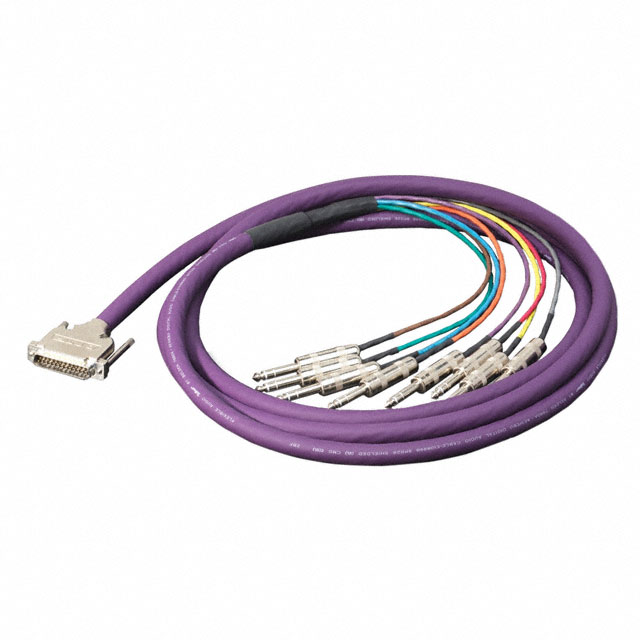

Cable Assembly D-Sub 25 pos Male to Phone Plug 6.35mm (1/4", 0.25") Stereo - Headphone (8) 10.00' (3.05m)

Technical documentation and resources

Specification	DB25M10TRS	DB25M1 Series

1st Connector	-	Plug, Male Pins
2nd Connector	-	Plug, Male Pins
Cable Type	Individual	Individual
Color	Multiple	Multiple, Violet
Connector Type	D-Sub 25 pos Male to Phone Plug 6.35mm (1/4	D-Sub 25 pos Male to XLR Female (8), D-Sub 25 pos Male to XLR Male (8), D-Sub 25 pos Male to Phone Plug 6.35mm (1/4, D-Sub 25 pos Male to XLR Female (4) and XLR Male (4)
Length	10 ft	10 ft
Length	3.05 m	3.05 m
Shielding	Unshielded	Unshielded
Type	-	DB25
Usage	-	Multi Media

Part	Connector Type	Shielding	Cable Type	Color	Length	Length	1st Connector	Type	Usage	2nd Connector
Switchcraft Inc. DB25M10XLRF	D-Sub 25 pos Male to XLR Female (8)	Unshielded	Individual	Multiple	10 ft	3.05 m
Switchcraft Inc. DB25M10XLRM	D-Sub 25 pos Male to XLR Male (8)	Unshielded	Individual	Multiple	10 ft	3.05 m
Switchcraft Inc. DB25M10TRS	D-Sub 25 pos Male to Phone Plug 6.35mm (1/4	Unshielded	Individual	Multiple	10 ft	3.05 m
Switchcraft Inc. DB25M10XLRMXLRF	D-Sub 25 pos Male to XLR Female (4) and XLR Male (4)	Unshielded	Individual	Multiple	10 ft	3.05 m
Switchcraft Inc. DB25M10DB25M		Unshielded		Violet	10 ft	3.05 m	Plug, Male Pins	DB25	Multi Media	Plug, Male Pins
