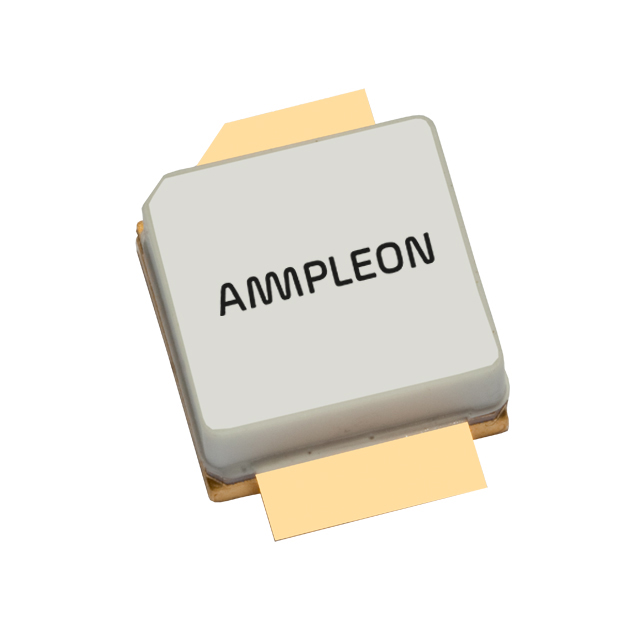

BLF6G38S-25,112

Obsolete

Ampleon USA Inc.

RF MOSFET LDMOS 28V CDFM2

Search across all available documentation for this part.

Obsolete

Ampleon USA Inc.

RF MOSFET LDMOS 28V CDFM2

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

RF Mosfet 28 V 225 mA 3.4GHz ~ 3.6GHz 15dB 4.5W CDFM2

Technical documentation and resources

Parameters and characteristics commom to parts in this series

RF MOSFET LDMOS 28V CDFM2

Part	Package / Case	Current Rating (Amps)	Current - Test	Gain	Voltage - Test	Frequency [Min]	Frequency [Max]	Mounting Type	Power - Output	Voltage - Rated	Supplier Device Package
Ampleon USA Inc. BLF6G38-10G,118	SOT-975C	3.1 A	130 mA	14 dBi	28 V	3.4 GHz	3.6 GHz	Surface Mount	2 W	65 V	CDFM2
Ampleon USA Inc. BLF6G38-10,118	SOT-975B	3.1 A	130 mA	14 dBi	28 V	3.4 GHz	3.6 GHz	Chassis Mount	2 W	65 V	CDFM2
Ampleon USA Inc. BLF6G38-50,135	SOT-502A	16.5 A	450 mA	14 dBi	28 V	3.4 GHz	3.6 GHz	Chassis Mount	9 W	65 V	SOT502A
Ampleon USA Inc. BLF6G38LS-50,112	SOT-502B	16.5 A	450 mA	14 dBi	28 V	3.4 GHz	3.6 GHz	Chassis Mount	9 W	65 V	SOT502B
Ampleon USA Inc. BLF6G38-50,112	SOT-502A	16.5 A	450 mA	14 dBi	28 V	3.4 GHz	3.6 GHz	Chassis Mount	9 W	65 V	SOT502A
Ampleon USA Inc. BLF6G38S-25,118	SOT-608B		225 mA	15 dB	28 V	3.4 GHz	3.6 GHz		4.5 W	65 V	CDFM2
Ampleon USA Inc. BLF6G38-100,112	SOT-502A	34 A	1.05 A	13 dBi	28 V	3.4 GHz	3.6 GHz	Chassis Mount	18.5 W	65 V	SOT502A
Ampleon USA Inc. BLF6G38-10G,112	SOT-975C	3.1 A	130 mA	14 dBi	28 V	3.4 GHz	3.6 GHz	Surface Mount	2 W	65 V	CDFM2
Ampleon USA Inc. BLF6G38LS-100,112	SOT-502B	34 A	1.05 A	13 dBi	28 V	3.4 GHz	3.6 GHz	Chassis Mount	18.5 W	65 V	SOT502B
Ampleon USA Inc. BLF6G38-10,112	SOT-975B	3.1 A	130 mA	14 dBi	28 V	3.4 GHz	3.6 GHz	Chassis Mount	2 W	65 V	CDFM2
