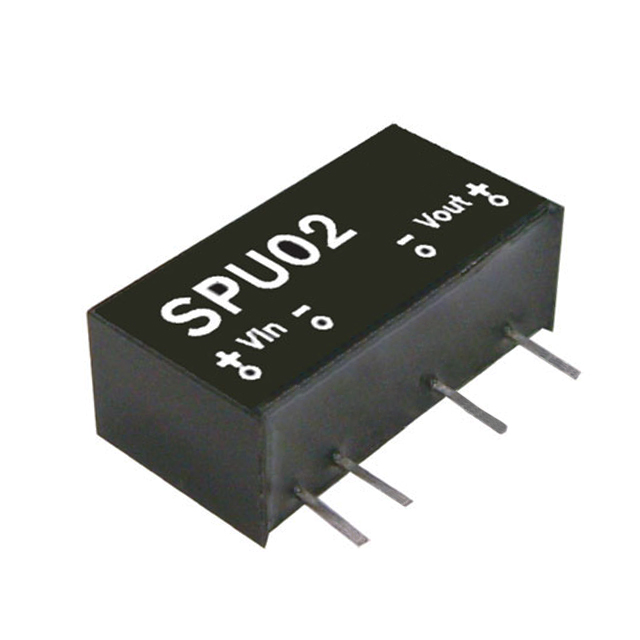

SPU02M-12
ObsoleteMEAN WELL USA Inc.
DC DC CONVERTER 12V 2W
SPU02M-12
ObsoleteMEAN WELL USA Inc.
DC DC CONVERTER 12V 2W
Description
General part information
SPU02M-12
Isolated Module DC DC Converter 1 Output 12V 167mA 10.8V - 13.2V Input
Technical Specifications
Parameters and characteristics for this part
| Specification | SPU02M-12 |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | FCC, CE |
| Current - Output (Max) | 167 mA |
| Efficiency | 81 % |
| Features | SCP, OCP |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Operating Temperature (Max) | 71 °C |
| Operating Temperature (Min) | -40 °C |
| Package Leads | 4 Leads |
| Package Name | 7-SIP Module |
| Power (Watts) | 2 w |
| Size / Dimension Height | 0.4 in |
| Size / Dimension Length | 0.77 in |
| Size / Dimension Width | 0.28 in |
| Type | Isolated Module |
| Voltage - Input (Max) | 13.2 V |
| Voltage - Input (Min) | 10.8 V |
| Voltage - Isolation | 3 kV |
| Voltage - Output 1 | 12 V |
