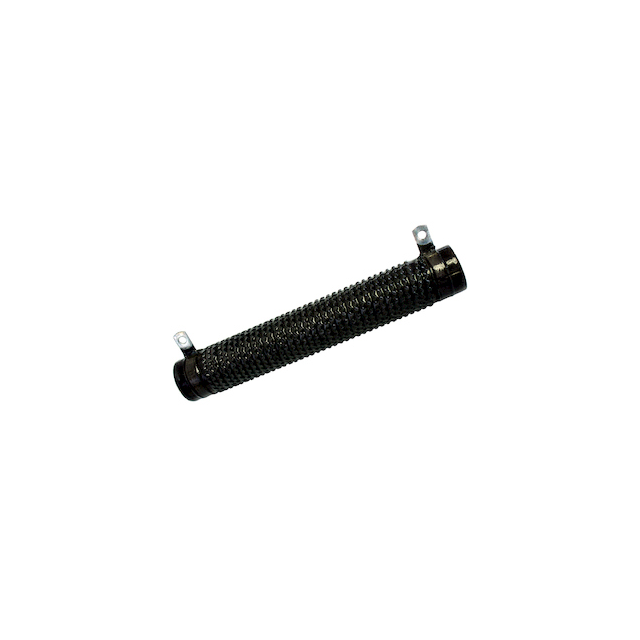

RBEF030080R00KFB00
ActiveVishay General Semiconductor - Diodes Division
RES CHAS MNT 80 OHM 10% 300W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
RBEF030080R00KFB00
ActiveVishay General Semiconductor - Diodes Division
RES CHAS MNT 80 OHM 10% 300W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | RBEF030080R00KFB00 |
|---|---|
| Coating, Housing Type | Vitreous Enamel Coated |
| Composition | Wirewound |
| Features | Pulse Withstanding |
| Lead Style | Solder Lugs |
| Mounting Feature | Brackets (not included) |
| Operating Temperature [Max] | 415 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | Radial, Tubular |
| Power (Watts) | 300 W |
| Resistance | 80 Ohms |
| Size / Dimension [diameter] | 28.58 mm |
| Size / Dimension [diameter] | 1.125 " |
| Size / Dimension [x] | 215.9 mm |
| Size / Dimension [x] | 8.5 in |
| Tolerance | 10 % |
RBEF0300 Series
| Part | Package / Case | Operating Temperature [Max] | Operating Temperature [Min] | Tolerance | Coating, Housing Type | Composition | Lead Style | Size / Dimension [diameter] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [diameter] | Resistance | Power (Watts) | Features | Mounting Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Vishay General Semiconductor - Diodes Division | Radial Tubular | 415 °C | -55 °C | 10 % | Vitreous Enamel Coated | Wirewound | Solder Lugs | 28.58 mm | 215.9 mm | 8.5 in | 1.125 " | 2 Ohms | 300 W | Pulse Withstanding | Brackets (not included) |
Vishay General Semiconductor - Diodes Division | Radial Tubular | 415 °C | -55 °C | 10 % | Vitreous Enamel Coated | Wirewound | Solder Lugs | 28.58 mm | 215.9 mm | 8.5 in | 1.125 " | 18 Ohms | 300 W | Pulse Withstanding | Brackets (not included) |
Vishay General Semiconductor - Diodes Division | Radial Tubular | 415 °C | -55 °C | 10 % | Vitreous Enamel Coated | Wirewound | Solder Lugs | 28.58 mm | 215.9 mm | 8.5 in | 1.125 " | 75 Ohms | 300 W | Pulse Withstanding | Brackets (not included) |
Vishay General Semiconductor - Diodes Division | Radial Tubular | 415 °C | -55 °C | 10 % | Vitreous Enamel Coated | Wirewound | Solder Lugs | 28.58 mm | 215.9 mm | 8.5 in | 1.125 " | 3 Ohms | 300 W | Pulse Withstanding | Brackets (not included) |
Vishay General Semiconductor - Diodes Division | Radial Tubular | 415 °C | -55 °C | 10 % | Vitreous Enamel Coated | Wirewound | Solder Lugs | 28.58 mm | 215.9 mm | 8.5 in | 1.125 " | 410 mOhms | 300 W | Pulse Withstanding | Brackets (not included) |
Vishay General Semiconductor - Diodes Division | Radial Tubular | 415 °C | -55 °C | 10 % | Vitreous Enamel Coated | Wirewound | Solder Lugs | 28.58 mm | 215.9 mm | 8.5 in | 1.125 " | 160 mOhms | 300 W | Pulse Withstanding | Brackets (not included) |
Vishay General Semiconductor - Diodes Division | Radial Tubular | 415 °C | -55 °C | 10 % | Vitreous Enamel Coated | Wirewound | Solder Lugs | 28.58 mm | 215.9 mm | 8.5 in | 1.125 " | 200 mOhms | 300 W | Pulse Withstanding | Brackets (not included) |
Vishay General Semiconductor - Diodes Division | Radial Tubular | 415 °C | -55 °C | 10 % | Vitreous Enamel Coated | Wirewound | Solder Lugs | 28.58 mm | 215.9 mm | 8.5 in | 1.125 " | 5 Ohms | 300 W | Pulse Withstanding | Brackets (not included) |
Vishay General Semiconductor - Diodes Division | Radial Tubular | 415 °C | -55 °C | 10 % | Vitreous Enamel Coated | Wirewound | Solder Lugs | 28.58 mm | 215.9 mm | 8.5 in | 1.125 " | 33 Ohms | 300 W | Pulse Withstanding | Brackets (not included) |
Vishay General Semiconductor - Diodes Division | Radial Tubular | 415 °C | -55 °C | 10 % | Vitreous Enamel Coated | Wirewound | Solder Lugs | 28.58 mm | 215.9 mm | 8.5 in | 1.125 " | 6.3 Ohms | 300 W | Pulse Withstanding | Brackets (not included) |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 387.84 | |
Description
General part information
RBEF0300 Series
80 Ohms ±10% 300W Wirewound Chassis Mount Resistor
Documents
Technical documentation and resources
