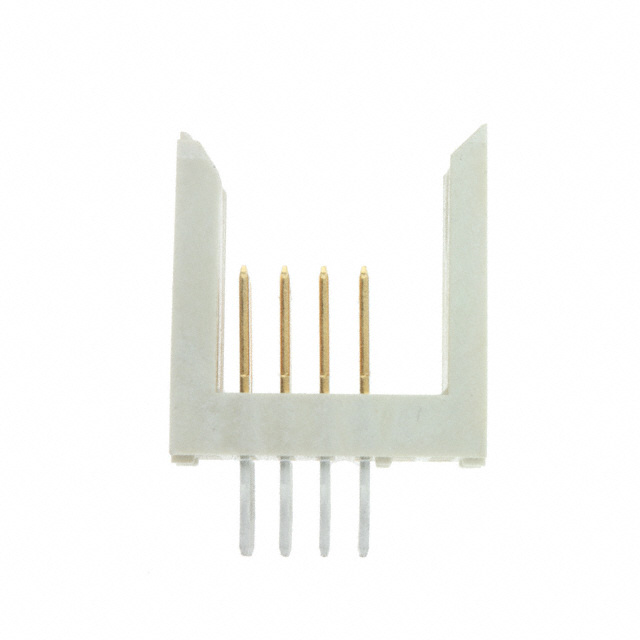

MP2-HP08-41P1-KR

Active

CONN HEADER BLADE PWR 8POS PCB

Search across all available documentation for this part.

Active

CONN HEADER BLADE PWR 8POS PCB

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	MP2-HP08-41P1-KR	MP2-HP08 Series

Color	Beige	Beige
Connector Style	Blade Power	Blade Power
Connector Type	Male Blades, Header	Male Blades, Header
Connector Usage	Backplane	Backplane
Contact Finish	Gold	Gold
Contact Finish Thickness	0.76 Ám	0.76 Ám
Contact Finish Thickness	30 Áin	30 Áin
Contact Layout, Typical	8 Power	8 Power
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Through Hole	Through Hole
Number of Positions	8	8
Number of Positions Loaded	All	All
Operating Temperature [Max]	125 °C	125 °C
Operating Temperature [Min]	-55 °C	-55 °C
Pitch [x]	0.236 in	0.236 in
Pitch [x]	6 mm	6 mm
Termination	Press-Fit	Press-Fit

CONN HEADER BLADE PWR 8POS PCB

Part	Contact Finish	Mounting Type	Number of Positions	Connector Usage	Pitch [x]	Pitch [x]	Termination	Contact Layout, Typical	Material Flammability Rating	Operating Temperature [Min]	Operating Temperature [Max]	Connector Style	Color	Number of Positions Loaded	Contact Finish Thickness	Contact Finish Thickness	Connector Type
3M MP2-HP08-41P1-TG30	Gold	Through Hole	8	Backplane	0.236 in	6 mm	Press-Fit	8 Power	UL94 V-0	-55 °C	125 °C	Blade Power	Beige	All	0.76 Ám	30 Áin	Header, Male Blades
3M MP2-HP08-41P1-KR	Gold	Through Hole	8	Backplane	0.236 in	6 mm	Press-Fit	8 Power	UL94 V-0	-55 °C	125 °C	Blade Power	Beige	All	0.76 Ám	30 Áin	Header, Male Blades

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

8 Connector Header, Male Blades Through Hole Beige Blade Power
