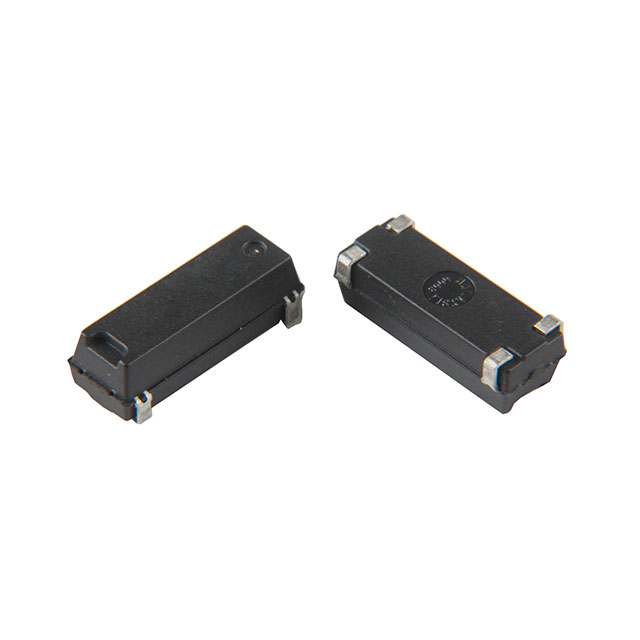

TT-SMDC-25.000-20-F-TR
ActiveRaltron Electronics
CRYSTAL 25.0000MHZ 20PF SMD
TT-SMDC-25.000-20-F-TR
ActiveRaltron Electronics
CRYSTAL 25.0000MHZ 20PF SMD
Description
General part information
TT-SMDC-25.000-20-F-TR
25 MHz ±50ppm Crystal 20pF 50 Ohms 4-SOJ, 9.40mm pitch
Technical Specifications
Parameters and characteristics for this part
| Specification | TT-SMDC-25.000-20-F-TR |
|---|---|
| ESR (Equivalent Series Resistance) | 50 Ohm |
| Frequency | 25 MHz |
| Frequency Stability | 50 ppm |
| Frequency Tolerance | 50 ppm |
| Height - Seated (Max) | 0.146 in |
| Load Capacitance | 20 pF |
| Mounting Type | Surface Mount |
| Operating Mode | Fundamental |
| Operating Temperature (Max) | 60 °C |
| Operating Temperature (Min) | -10 °C |
| Package / Case | 4-SOJ |
| Package Diameter | 9.4 mm |
| Package Name | 4-SOJ |
| Package Pitch | 9.4 mm |
| Size / Dimension Length | 0.492 in |
| Size / Dimension Width | 0.181 in |
| Type | MHz Crystal |
