8332 0601000

Active

Belden Inc.

MULTI-PAIR 4COND 24AWG

Search across all available documentation for this part.

Active

Belden Inc.

MULTI-PAIR 4COND 24AWG

Technical Specifications

Parameters and characteristics for this part

Specification	8332 0601000

Cable Type	Multi-Pair
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	32 AWG
Conductor Strand [custom]	7
Jacket (Insulation) Diameter [diameter]	0.25 "
Jacket (Insulation) Diameter [diameter]	6.35 mm
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.889 mm
Jacket (Insulation) Thickness	0.035 in
Jacket Color	Chrome
Length	1000 ft
Length	304.8 m
Number of Conductors	4
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-30 ░C
Ratings	UL Style 2464
Shield Coverage	100 %, 65 %
Shield Material	Copper, Tinned, Aluminum
Shield Type	Foil, Braid
Usage	Computer
Voltage	300 V
Wire Gauge	24 AWG

Part	Wire Gauge	Conductor Material	Length	Length	Usage	Number of Conductors	Ratings	Shield Type	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Jacket (Insulation) Material	Shield Coverage	Voltage	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Conductor Strand [custom]	Conductor Strand [custom]	Jacket Color	Operating Temperature [Min]	Operating Temperature [Max]	Shield Material	Cable Type	Conductor Insulation	Length [x]	Length [x]
Belden Inc. 8332 0601000	24 AWG	Copper Tinned	1000 ft	304.8 m	Computer	4	UL Style 2464	Braid Foil	0.889 mm	0.035 in	Poly-Vinyl Chloride (PVC)	65 % 100 %	300 V	0.25 "	6.35 mm	32 AWG	7	Chrome	-30 ░C	80 C	Aluminum Copper Tinned	Multi-Pair	Poly-Vinyl Chloride (PVC)
Belden Inc. 8332 060100	24 AWG	Copper Tinned			Computer	4	UL Style 2464	Braid Foil	0.889 mm	0.035 in	Poly-Vinyl Chloride (PVC)	65 % 100 %		0.25 "	6.35 mm	32 AWG	7	Chrome	-30 ░C	80 C	Aluminum Copper Tinned	Multi-Pair	Poly-Vinyl Chloride (PVC)	30.5 m	100 ft

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1000	$ 2.51

General part information

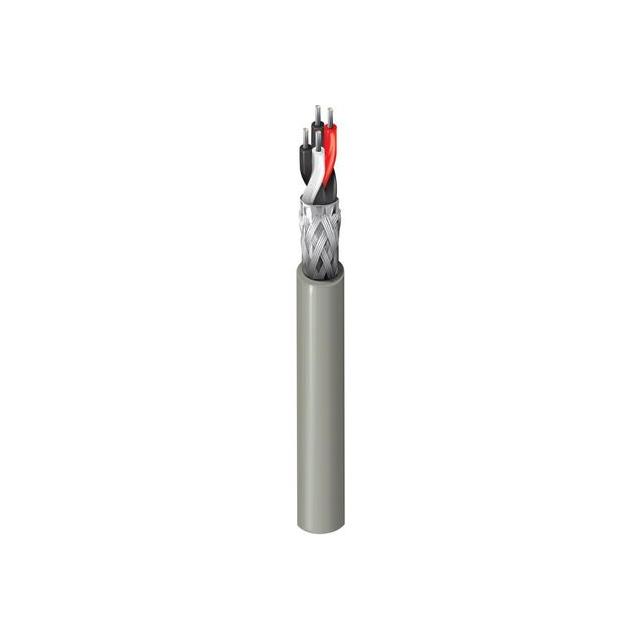

4 (2 Pair) Conductor Multi-Pair Cable Chrome 24 AWG Foil, Braid 1000.0' (304.8m)
