BK1/S506-6.3-R
ActiveEaton - Electronics Division

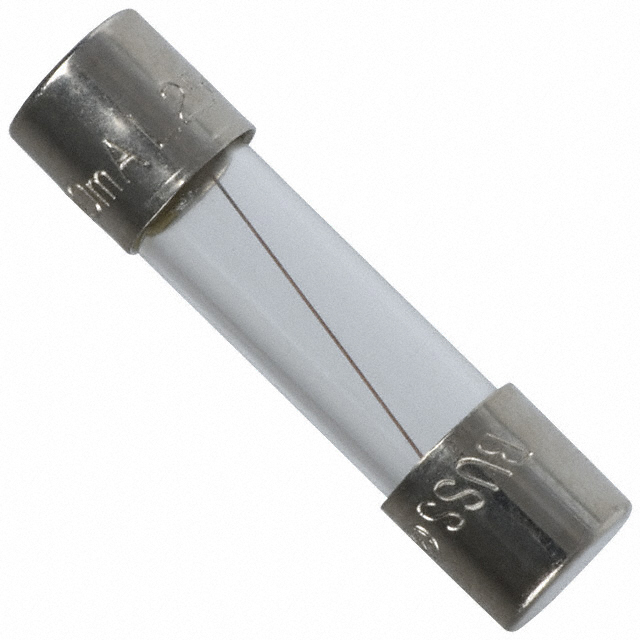

FUSE GLASS 6.3A 250VAC 5X20MM
BK1/S506-6.3-R
ActiveEaton - Electronics Division
FUSE GLASS 6.3A 250VAC 5X20MM
Description
General part information
BK1/S506-6.3-R
6.3 A 250 V AC DC Fuse Cartridge, Glass Requires Holder 5mm x 20mm
Technical Specifications
Parameters and characteristics for this part
| Specification | BK1/S506-6.3-R |
|---|---|
| Approval Agency | CSA, SEMKO, BSI, PSE/JET, CCC, VDE, IMQ, cURus |
| Breaking Capacity | 63 A |
| Current Rating | 6.3 A |
| DC Cold Resistance | 0.0071 Ohms |
| Fuse Type | Cartridge, Glass |
| Melting I²t | 237.6 |
| Mounting Type | Requires Holder |
| Package / Case | 5mm x 20mm |
| Package Diameter | 5 mm, 20 mm |
| Package Height | 0 mm |
| Package Length | 5 mm |
| Package Width | 20 mm |
| Response Time | Slow Blow |
| Size / Dimension Diameter | 0.205 in |
| Size / Dimension Length | 0.787 in |
| Voltage Rating - AC | 250 V |
