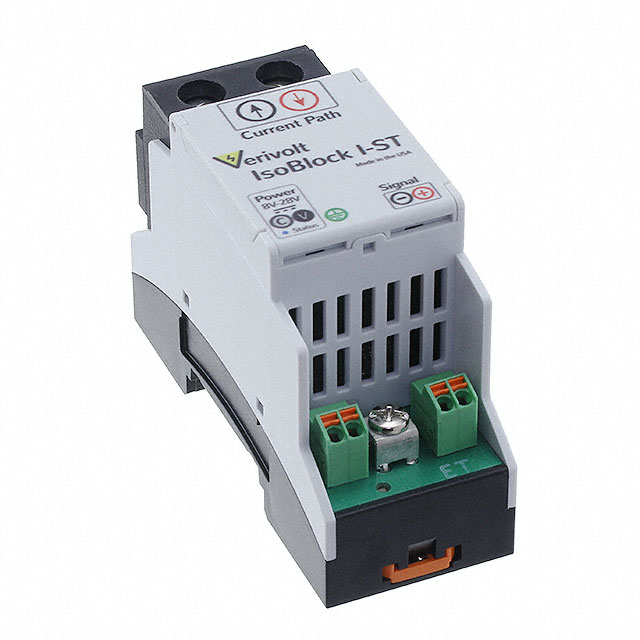

ISOBLOCK I-ST-1C (50A 10V)

Active

Verivolt LLC

TRANSDUCER CURRENT 9-28VDC

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

ISOBLOCK I-ST-1C (50A 10V)

Active

Verivolt LLC

TRANSDUCER CURRENT 9-28VDC

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 565.57
		10	$ 437.41
		25	$ 392.10

Description

General part information

ISOBLOCK I Series

Current Transducer 0 ~ 50A Input ±10V Output 9 ~ 28VDC DIN Rail

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	ISOBLOCK I-ST-1C (50A 10V)	ISOBLOCK I Series

Accuracy	0.2 %	0.2 %
Input Range	-	200 mV
Input Range [Max]	50 A	6 - 60 A
Input Range [Min]	0 A	0 A
Isolation	2000 V	1200 - 2000 V
Mounting Type	DIN Rail	DIN Rail
Operating Temperature [Max]	70 °C	70 °C
Operating Temperature [Min]	-25 °C	-25 °C
Output	10 V	5 - 10 V
Response Time	2.8 µs	2.8 - 5 µs
Termination Style	Spring Terminal, Screw Terminal	Spring Terminal, Screw Terminal
Type	Current Transducer	Current Transducer
Voltage - Supply [Max]	28 V	28 V
Voltage - Supply [Min]	9 V	9 V

ISOBLOCK I Series

TRANSDUCER CURRENT 9-28VDC

Part	Termination Style	Voltage - Supply [Max]	Voltage - Supply [Min]	Mounting Type	Isolation	Type	Output	Accuracy	Response Time	Operating Temperature [Max]	Operating Temperature [Min]	Input Range [Max]	Input Range [Min]	Input Range
Verivolt LLC ISOBLOCK I-FG-4C (15A 5V)	Spring Terminal	28 V	9 V	DIN Rail	1200 V	Current Transducer	5 V	0.2 %	5 µs	70 °C	-25 °C	15 A	0 A
Verivolt LLC ISOBLOCK I-FG-4C (6A 5V)	Spring Terminal	28 V	9 V	DIN Rail	1200 V	Current Transducer	5 V	0.2 %	5 µs	70 °C	-25 °C	6 A	0 A
Verivolt LLC ISOBLOCK I-ST-1C (200MV 10V)	Screw Terminal, Spring Terminal	28 V	9 V	DIN Rail	2000 V	Current Transducer	10 V	0.2 %	2.8 µs	70 °C	-25 °C			200 mV
Verivolt LLC ISOBLOCK I-FG-1C (15A 10V)	Spring Terminal	28 V	9 V	DIN Rail	1200 V	Current Transducer	10 V	0.2 %	5 µs	70 °C	-25 °C	15 A	0 A
Verivolt LLC ISOBLOCK I-ST-1C (50A 10V)	Screw Terminal, Spring Terminal	28 V	9 V	DIN Rail	2000 V	Current Transducer	10 V	0.2 %	2.8 µs	70 °C	-25 °C	50 A	0 A
Verivolt LLC ISOBLOCK I-ST-1C (20A 10V)	Screw Terminal, Spring Terminal	28 V	9 V	DIN Rail	2000 V	Current Transducer	10 V	0.2 %	2.8 µs	70 °C	-25 °C	20 A	0 A
Verivolt LLC ISOBLOCK I-FG-1C (25A 5V)	Spring Terminal	28 V	9 V	DIN Rail	1200 V	Current Transducer	5 V	0.2 %	5 µs	70 °C	-25 °C	25 A	0 A
Verivolt LLC ISOBLOCK I-ST-1C (60A 10V)	Screw Terminal, Spring Terminal	28 V	9 V	DIN Rail	2000 V	Current Transducer	10 V	0.2 %	2.8 µs	70 °C	-25 °C	60 A	0 A
Verivolt LLC ISOBLOCK I-ST-1C (30A 10V)	Screw Terminal, Spring Terminal	28 V	9 V	DIN Rail	2000 V	Current Transducer	10 V	0.2 %	2.8 µs	70 °C	-25 °C
Verivolt LLC ISOBLOCK I-FG-1C (50A 10V)	Screw Terminal, Spring Terminal	28 V	9 V	DIN Rail	1200 V	Current Transducer	10 V	0.2 %	5 µs	70 °C	-25 °C	50 A	0 A
