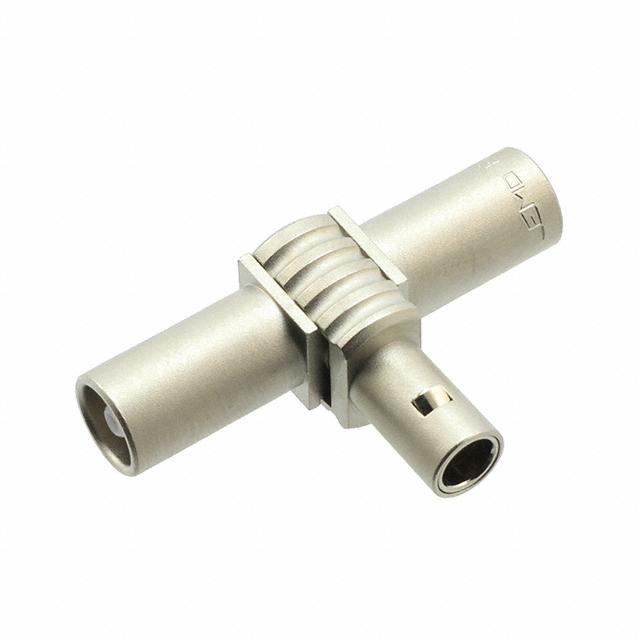

FTA.00.250.NTF

Active

LEMO

CONN ADAPT PLUG-JACK NIM-CAMAC

Search across all available documentation for this part.

Active

LEMO

CONN ADAPT PLUG-JACK NIM-CAMAC

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	FTA.00.250.NTF	FTA.00.250 Series

Adapter Series	NIM-CAMAC CD/N 549 to NIM-CAMAC CD/N 549, Dual	NIM-CAMAC CD/N 549 to NIM-CAMAC CD/N 549, Dual
Adapter Type	Plug to Jack	Plug to Jack
Body Finish	Nickel	Chrome, Nickel
Body Material	Brass	Brass
Center Contact Material	Brass, Bronze	Brass, Bronze
Center Contact Plating	Gold	Gold
Conversion Type	Same Series	Same Series
Convert From (Adapter End)	NIM-CAMAC CD/N 549 Plug, Male Pin	NIM-CAMAC CD/N 549 Plug, Male Pin
Convert To (Adapter End)	NIM-CAMAC CD/N 549 Jack, Female Socket (2)	NIM-CAMAC CD/N 549 Jack, Female Socket (2)
Dielectric Material	Polytetrafluoroethylene (PTFE)	Polytetrafluoroethylene (PTFE)
Fastening Type	Push-Pull	Push-Pull
Impedance	50 Ohms	50 Ohms
Ingress Protection	IP50	IP50
Mating Cycles	5000	5000
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Style	T-Shape	T-Shape

CONN ADAPT PLUG-JACK NIM-CAMAC

Part	Fastening Type	Mounting Type	Dielectric Material	Adapter Series	Conversion Type	Body Finish	Convert To (Adapter End)	Center Contact Plating	Adapter Type	Mating Cycles	Style	Impedance	Body Material	Center Contact Material	Convert From (Adapter End)	Ingress Protection
LEMO FTA.00.250.CTF	Push-Pull	Free Hanging (In-Line)	Polytetrafluoroethylene (PTFE)	NIM-CAMAC CD/N 549 to NIM-CAMAC CD/N 549, Dual	Same Series	Chrome	NIM-CAMAC CD/N 549 Jack, Female Socket (2)	Gold	Plug to Jack	5000	T-Shape	50 Ohms	Brass	Brass, Bronze	NIM-CAMAC CD/N 549 Plug, Male Pin	IP50
LEMO FTA.00.250.NTF	Push-Pull	Free Hanging (In-Line)	Polytetrafluoroethylene (PTFE)	NIM-CAMAC CD/N 549 to NIM-CAMAC CD/N 549, Dual	Same Series	Nickel	NIM-CAMAC CD/N 549 Jack, Female Socket (2)	Gold	Plug to Jack	5000	T-Shape	50 Ohms	Brass	Brass, Bronze	NIM-CAMAC CD/N 549 Plug, Male Pin	IP50

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Adapter Coaxial Connector NIM-CAMAC CD/N 549 Plug, Male Pin To NIM-CAMAC CD/N 549 Jack, Female Socket (2) 50 Ohms
