XDDGK14A

Active

SunLED

DISPLAY 7SEG 0.56" SGL GRN 10DIP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

XDDGK14A

Active

SunLED

DISPLAY 7SEG 0.56" SGL GRN 10DIP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	XDDGK14A

Color	Green
Common Pin	Common Anode
Current - Test	10 mA
Digit/Alpha Size	0.56 in
Digit/Alpha Size	14.22 mm
Display Type	7-Segment
Millicandela Rating	72 mcd
Number of Characters [custom]	1
Package / Case	0.6 in
Package / Case	15.24 mm
Package / Case	10-DIP
Power Dissipation (Max) [Max]	102.5 mW
Size / Dimension [x]	0.75 in
Size / Dimension [x]	19.05 mm
Size / Dimension [y]	12.7 mm
Size / Dimension [y]	0.5 in
Size / Dimension [z]	8 mm
Size / Dimension [z]	0.315 "
Voltage - Forward (Vf) (Typ)	3 V
Wavelength - Peak	515 nm

XDDGK14 Series

DISPLAY 7SEG 0.56" SGL GRN 10DIP

Part	Current - Test	Common Pin	Package / Case	Package / Case	Package / Case	Wavelength - Peak	Millicandela Rating	Power Dissipation (Max) [Max]	Color	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Display Type	Digit/Alpha Size	Digit/Alpha Size	Number of Characters [custom]	Voltage - Forward (Vf) (Typ)
SunLED XDDGK14A	10 mA	Common Anode	0.6 in	15.24 mm	10-DIP	515 nm	72 mcd	102.5 mW	Green	12.7 mm	0.75 in	19.05 mm	8 mm	0.315 "	0.5 in	7-Segment	0.56 in	14.22 mm	1	3 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	2000	$ 1.05

Description

General part information

XDDGK14 Series

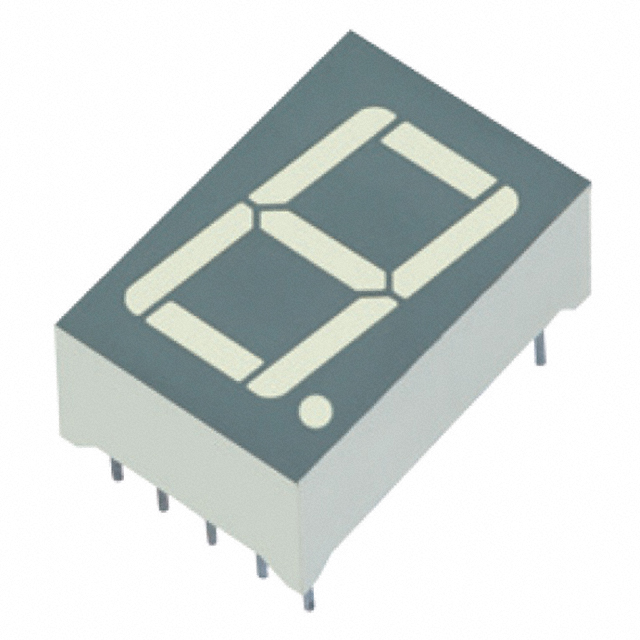

Display Modules - LED Character and Numeric Green 7-Segment 1 Character Common Anode 3V 10mA 0.750" H x 0.500" W x 0.315" D (19.05mm x 12.70mm x 8.00mm) 10-DIP (0.600", 15.24mm)
