LED50W-012-C4200

Obsolete

Thomas Research Products

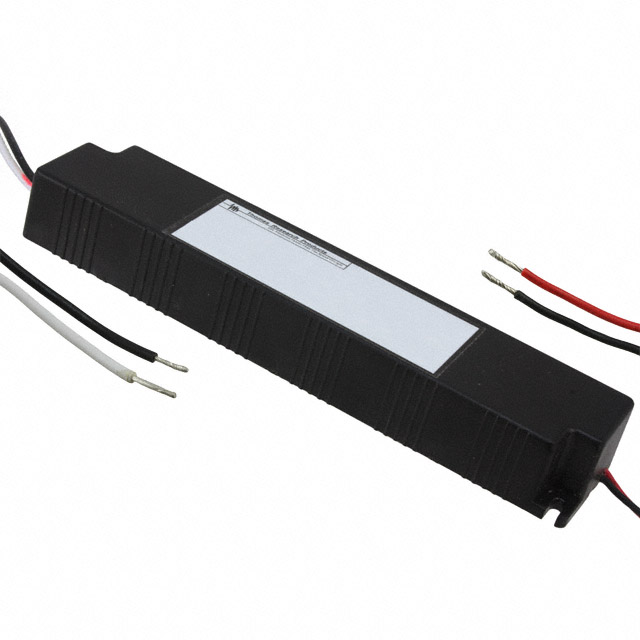

LED DRIVER CC AC/DC 4-12V 4.2A

Search across all available documentation for this part.

Obsolete

Thomas Research Products

LED DRIVER CC AC/DC 4-12V 4.2A

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	LED50W-012-C4200	LED50W Series

Approval Agency	cULus, CE	cULus, CE
Current - Output (Max) [Max]	4.2 A	1.75 - 4.2 A
Efficiency	84 %	84 - 87 %
Features	SCP, OCP, OVP	SCP, OCP, OVP
Mounting Type	Chassis Mount	Chassis Mount
Number of Outputs	1	1
Operating Temperature [Max]	60 °C	60 - 65 °C
Operating Temperature [Min]	-30 ░C	-30 ░C
Power (Watts)	50 W	50 W
Ratings	IP66	IP66
Size / Dimension [x]	194 mm	194 mm
Size / Dimension [x]	7.64 in	7.64 in
Size / Dimension [y]	43 mm	43 mm
Size / Dimension [y]	1.69 in	1.69 in
Size / Dimension [z]	0.98 in	0.98 in
Size / Dimension [z]	25 mm	25 mm
Termination Style	Wire Leads	Wire Leads
Topology	AC DC Converter	AC DC Converter
Type	Constant Current	Constant Current, Constant Voltage
Voltage - Input (Max) [Max]	305 VAC	305 VAC
Voltage - Input (Min) [Min]	90 VAC	90 VAC
Voltage - Output	-	24 - 29 V
Voltage - Output [Max]	12 V	12 V
Voltage - Output [Min]	6 V	6 V

LED DRIVER CC AC/DC 4-12V 4.2A

Part	Current - Output (Max) [Max]	Voltage - Input (Min) [Min]	Mounting Type	Number of Outputs	Type	Approval Agency	Topology	Voltage - Output [Min]	Voltage - Output [Max]	Features	Termination Style	Efficiency	Voltage - Input (Max) [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Ratings	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Power (Watts)	Voltage - Output
Thomas Research Products LED50W-012-C4200	4.2 A	90 VAC	Chassis Mount	1	Constant Current	CE, cULus	AC DC Converter	6 V	12 V	OCP, OVP, SCP	Wire Leads	84 %	305 VAC	-30 ░C	60 °C	IP66	194 mm	43 mm	7.64 in	1.69 in	0.98 in	25 mm	50 W
Thomas Research Products LED50W-029	1.75 A	90 VAC	Chassis Mount	1	Constant Voltage	CE, cULus	AC DC Converter			OCP, OVP, SCP	Wire Leads	87 %	305 VAC	-30 ░C	60 °C	IP66	194 mm	43 mm	7.64 in	1.69 in	0.98 in	25 mm	50 W	29 V
Thomas Research Products LED50W-024	2.1 A	90 VAC	Chassis Mount	1	Constant Voltage	CE, cULus	AC DC Converter			OCP, OVP, SCP	Wire Leads	87 %	305 VAC	-30 ░C	65 °C	IP66	194 mm	43 mm	7.64 in	1.69 in	0.98 in	25 mm	50 W	24 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

4.2A 6 ~ 12V Constant Current LED Driver AC DC Converter Topology 1 Output
