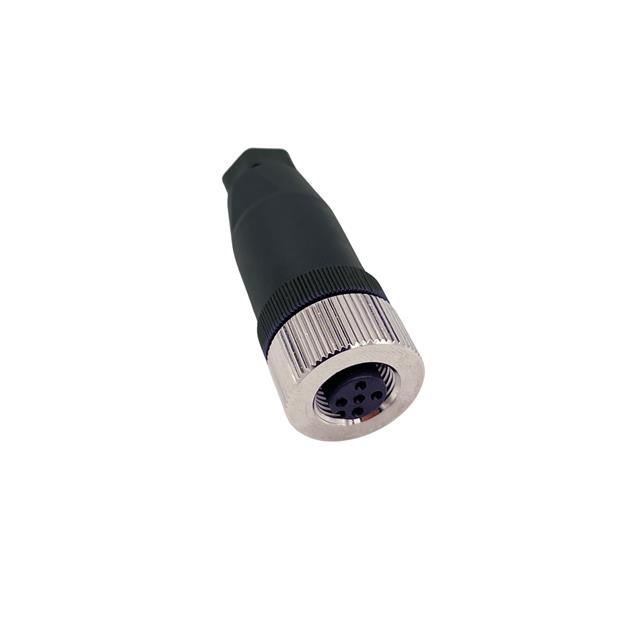

858FA05-203RBU1
ActiveSENSOR CONNECTOR, VULCON SERIES, M12, FEMALE, 5 POSITIONS, SCREW SOCKET, STRAIGHT CABLE MOUNT
858FA05-203RBU1
ActiveSENSOR CONNECTOR, VULCON SERIES, M12, FEMALE, 5 POSITIONS, SCREW SOCKET, STRAIGHT CABLE MOUNT
Description
General part information
858FA05-203RBU1
VULCON M12 circular field installable connectors are designed to easily accommodate a variety of applications including industrial communication equipment, process automation, robotics and factory floor installations. These field installable connectors utilize screw terminations allowing for efficient assembly in the field while still providing an IP67 rated solution where standard overmolded connectors are not an option.
Technical Specifications
Parameters and characteristics for this part
| Specification | 858FA05-203RBU1 |
|---|---|
| Applications | Industrial, Automation |
| Cable Opening (Max) | 0.315 in |
| Cable Opening (Min) | 0.236 in |
| Color | Silver |
| Connector Type | Female Sockets, Plug |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | Flash |
| Contact Material | Brass |
| Current Rating | 4 A |
| Fastening Type | Threaded |
| Features | Coupling Nut, Backshell |
| Ingress Protection Description | Dust Tight, Water Resistant |
| Ingress Protection IP Rating | IP66 |
| Insert Material | Polyamide, Nylon 6/6, PA66 |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 5 |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Orientation | A |
| Primary Material | Plastic |
| Shell Size - Insert | M12-5 |
| Shielding | Unshielded |
| Termination | Screw |
| Voltage Rating | 60 V |
