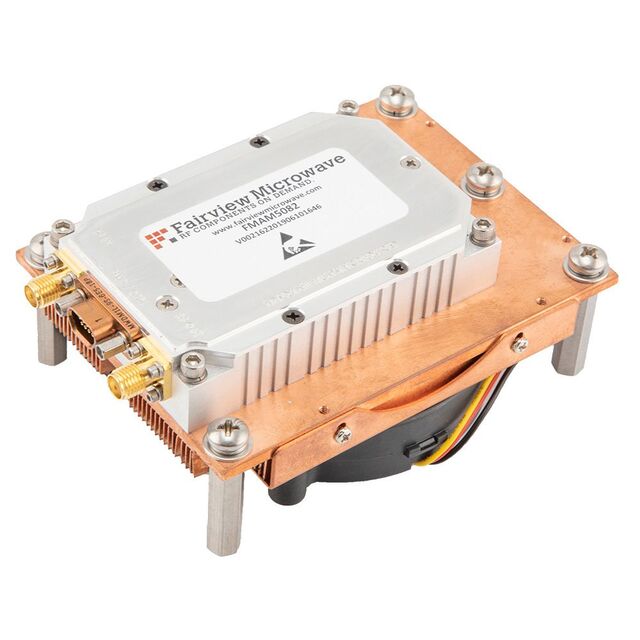

FMAM5082
ActiveFairview Microwave
POWER AMP 1000MHZ-2.5GHZ P1DB SM
FMAM5082
ActiveFairview Microwave
POWER AMP 1000MHZ-2.5GHZ P1DB SM
Description
General part information
FMAM5082
RF Amplifier IC General Purpose 1GHz ~ 2.5GHz
Technical Specifications
Parameters and characteristics for this part
| Specification | FMAM5082 |
|---|---|
| Current - Supply | 1.9 A |
| Frequency (Max) | 2.5 GHz |
| Frequency (Min) | 1 GHz |
| Gain | 50 dB |
| Mounting Type | Chassis Mount |
| P1dB | 38 dBm |
| Package / Case | Module, SMA Connectors |
| RF Type | General Purpose |
| Voltage - Supply (Maximum) | 32 V |
| Voltage - Supply (Minimum) | 11 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
