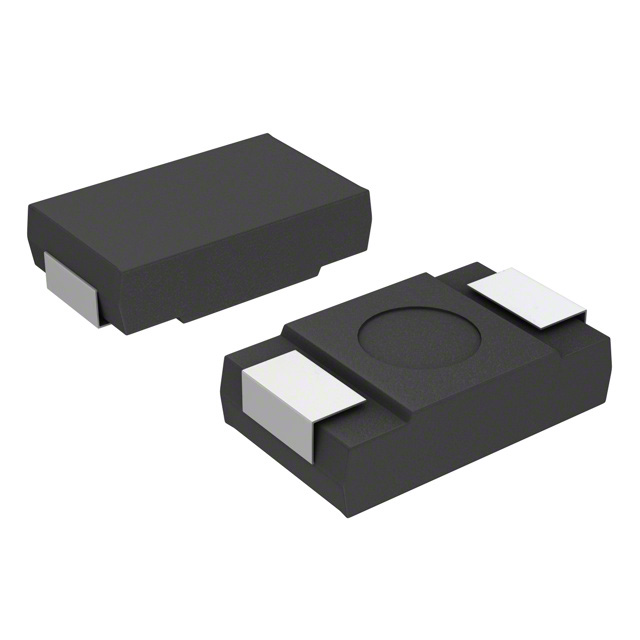

SPSX471M02R-6
ObsoleteCornell Dubilier Knowles
CAP ALUM POLY 470UF 20% 2V SMD
SPSX471M02R-6
ObsoleteCornell Dubilier Knowles
CAP ALUM POLY 470UF 20% 2V SMD
Description
General part information
SPSX471M02R-6
470 µF 2 V Aluminum - Polymer Capacitors 2917 (7343 Metric) 6mOhm 1000 Hrs @ 105°C
Technical Specifications
Parameters and characteristics for this part
| Specification | SPSX471M02R-6 |
|---|---|
| Applications | General Purpose |
| Capacitance | 470 µF |
| ESR (Equivalent Series Resistance) | 6 mOhm |
| Height - Seated (Max) | 0.083 in |
| Lifetime | 1000 Hrs |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | 2917 (7343 Metric) |
| Ripple Current | 3.5 A |
| Size / Dimension Length | 0.287 in |
| Size / Dimension Width | 0.169 in |
| Tolerance | 20 % |
| Type | Polymer |
| Voltage - Rated | 2 VAC |
