A1183.25

Active

American Electrical Inc.

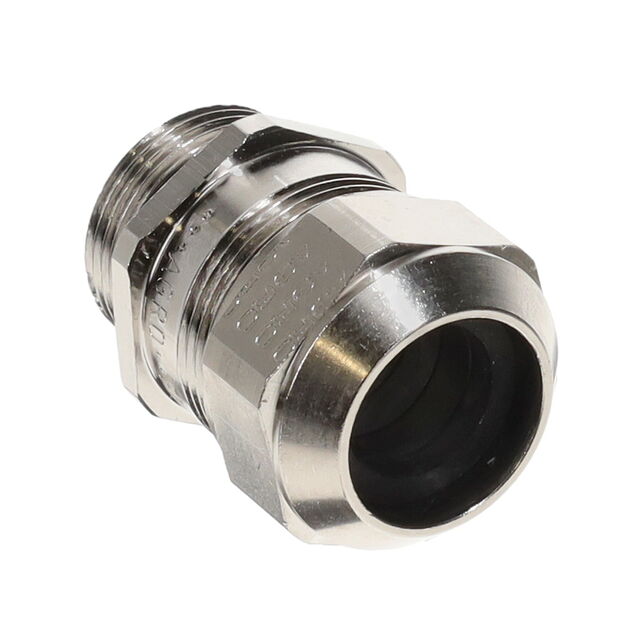

CABLE GLND 12.5-20.5MM M25 BRASS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsAE 2014 Full Line Catalog Datasheet

A1183.25

Active

American Electrical Inc.

CABLE GLND 12.5-20.5MM M25 BRASS

Deep-Dive with AI

DocumentsAE 2014 Full Line Catalog Datasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 25.74
		10	$ 19.85
		25	$ 17.98
		50	$ 16.71
		100	$ 15.56
		250	$ 14.21
		500	$ 13.30

Description

General part information

1183 Series

Cable Gland, Long Entry Brass, Nickel Plated M25x1.5 Silver

Documents

Technical documentation and resources

AE 2014 Full Line Catalog

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	A1183.25	1183 Series

Color	Silver	Silver
Includes	Seal, O-Ring, Strain Relief, Contact Spring	Seal, O-Ring, Strain Relief, Contact Spring
Ingress Protection	IP68, IP69K	IP68, IP69K
Material	Brass, Nickel Plated	Brass, Nickel Plated
Operating Temperature [Max]	100 °C	100 °C
Operating Temperature [Min]	-60 °C	-60 °C
Outside Cable Diameter (Max)	-	5 - 15 mm
Outside Cable Diameter (Max)	-	0.197 - 0.591 in
Outside Cable Diameter (Max)	-	25.5 mm
Outside Cable Diameter (Max) [Max]	0.807 in	0.807 in
Outside Cable Diameter (Max) [Max]	20.5 mm	1.004 - 20.5 mm
Outside Cable Diameter (Min)	12.5 mm	12.5 mm
Outside Cable Diameter (Min)	-	3.5 - 5 mm
Outside Cable Diameter (Min)	-	0.138 - 0.197 in
Outside Cable Diameter (Min)	-	8 mm
Outside Cable Diameter (Min) [Min] [diameter]	0.492 in	0.315 - 0.492 in
Panel Hole Size	0.984 in	0.472 - 1.26 in
Panel Hole Size	25 mm	12 - 32 mm
Thread Length	0.433 in	0.394 - 0.512 in
Thread Length	11 mm	10 - 13 mm
Thread Size	M25x1.5	M25x1.5, M12x1.5, M20x1.5, M32x1.5
Type	Cable Gland, Long Entry	Cable Gland, Long Entry

1183 Series

CABLE GLND 12.5-20.5MM M25 BRASS

Part	Outside Cable Diameter (Min) [Min] [diameter]	Outside Cable Diameter (Min)	Outside Cable Diameter (Max) [Max]	Outside Cable Diameter (Max) [Max]	Material	Includes	Thread Length	Thread Length	Color	Ingress Protection	Operating Temperature [Max]	Operating Temperature [Min]	Type	Panel Hole Size	Panel Hole Size	Thread Size	Outside Cable Diameter (Max) [Max] [diameter]	Outside Cable Diameter (Max) [Max] [diameter]	Outside Cable Diameter (Min) [Min]	Outside Cable Diameter (Min) [Min]	Outside Cable Diameter (Min) [Min] [diameter]	Outside Cable Diameter (Max) [Max]
American Electrical Inc. A1183.25	0.492 in	12.5 mm	0.807 in	20.5 mm	Brass, Nickel Plated	Contact Spring, O-Ring, Seal, Strain Relief	0.433 in	11 mm	Silver	IP68, IP69K	100 °C	-60 °C	Cable Gland, Long Entry	0.984 in	25 mm	M25x1.5
American Electrical Inc. A1183.12.050					Brass, Nickel Plated	Contact Spring, O-Ring, Seal, Strain Relief	0.394 in	10 mm	Silver	IP68, IP69K	100 °C	-60 °C	Cable Gland, Long Entry	0.472 in	12 mm	M12x1.5	5 mm	0.197 in	3.5 mm	0.138 in
American Electrical Inc. A1183.20	0.315 in				Brass, Nickel Plated	Contact Spring, O-Ring, Seal, Strain Relief	0.394 in	10 mm	Silver	IP68, IP69K			Cable Gland, Long Entry	0.787 in	20 mm	M20x1.5	15 mm	0.591 in			8 mm
American Electrical Inc. A1183.12.065					Brass, Nickel Plated	Contact Spring, O-Ring, Seal, Strain Relief	0.394 in	10 mm	Silver	IP68, IP69K	100 °C	-60 °C	Cable Gland, Long Entry	0.472 in	12 mm	M12x1.5	6.5 mm	0.256 "	5 mm	0.197 in
American Electrical Inc. A1183.32				1.004 "	Brass, Nickel Plated	Contact Spring, O-Ring, Seal, Strain Relief	0.512 in	13 mm	Silver	IP68, IP69K	100 °C	-60 °C	Cable Gland, Long Entry	1.26 in	32 mm	M32x1.5						25.5 mm
