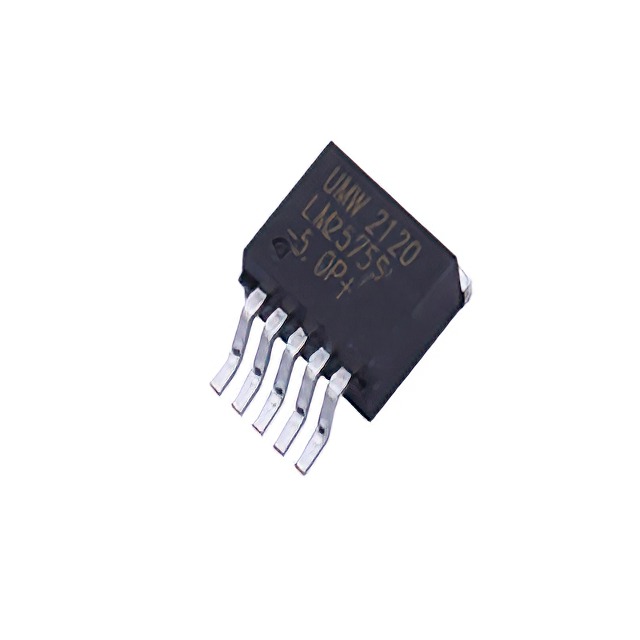

LM2575S-5.0

Active

UMW

IC REG BUCK 5V 2A TO263-5L

Search across all available documentation for this part.

Active

UMW

IC REG BUCK 5V 2A TO263-5L

Technical Specifications

Parameters and characteristics commom to parts in this series

IC REG BUCK 3.3V 2A TO263-5L

Part	Operating Temperature [Min]	Operating Temperature [Max]	Current - Output	Output Configuration	Function	Number of Outputs	Package / Case	Voltage - Output (Min/Fixed)	Mounting Type	Topology	Supplier Device Package	Output Type	Output Type	Voltage - Output (Max)	Voltage - Input (Max) [Max]
UMW LM2575S-3.3	-40 °C	125 ¯C	2 A	Positive	Step-Down	1	D2PAK (5 Leads + Tab), TO-263-6, TO-263BA	3.3 V	Surface Mount	Buck	TO-263-5L	1.81 mOhm
UMW LM2575S-12	-40 °C	125 °C	2 A	Positive	Step-Down	1	D2PAK (5 Leads + Tab), TO-263-6, TO-263BA	12 V	Surface Mount	Buck	TO-263-5L	1.81 mOhm
UMW LM2575S-ADJ	-40 °C	125 °C	2 A	Positive	Step-Down	1	D2PAK (5 Leads + Tab), TO-263-6, TO-263BA	1.2 V	Surface Mount	Buck	TO-263-5L		Adjustable	37 V
UMW LM2575HVS-12	-40 °C	125 ¯C	2 A	Positive	Step-Down	1	D2PAK (5 Leads + Tab), TO-263-6, TO-263BA	12 V	Surface Mount	Buck	TO-263-5L	1.81 mOhm			57 V
UMW LM2575S-5.0	-40 °C	125 °C	2 A	Positive	Step-Down	1	D2PAK (5 Leads + Tab), TO-263-6, TO-263BA	5 V	Surface Mount	Buck	TO-263-5L	1.81 mOhm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Buck Switching Regulator IC Positive Fixed 5V 1 Output 2A TO-263-6, D2PAK (5 Leads + Tab), TO-263BA
