09692017072

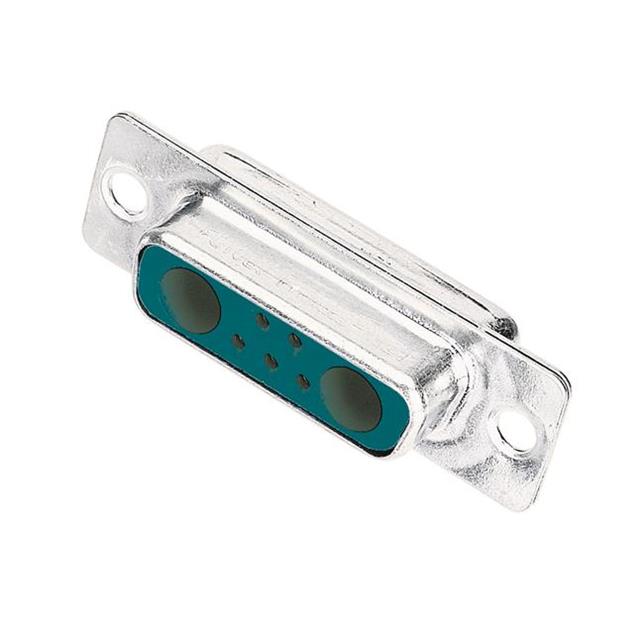

7 (5 + 2 Coax or Power) Position D-Sub, Combo Receptacle, Female Sockets Connector
Technical Specifications
Parameters and characteristics for this part
| Specification | 09692017072 |
|---|---|
| Color | Green |
| Connector Layout | DA, A |
| Connector Style | Combo, D-Sub |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish | Gold-Palladium, Gold |
| Contact Type | Coax or Power, Signal |
| Current Rating | 5 A |
| Dielectric Material | Polyester Thermoplastic, Glass Filled |
| Finish | Tin Plated |
| Flange Feature | Shell (Unthreaded), Housing |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions (Special) | 2 |
| Number of Positions (Standard) | 5 |
| Number of Positions (Total) | 7 |
| Number of Rows | 2 |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Part Code | 7W2 |
| Position Types | Power, Coax |
| Shell Material | Steel |
| Shell Size | 2 |
| Termination | Solder Cup |
| Wire Gauge | 20 AWG |
