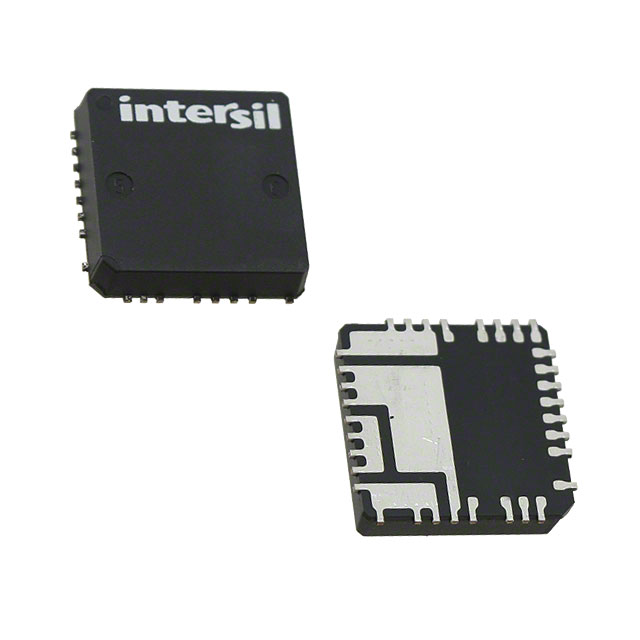

ZL9117MIRZ
ActiveDIGITAL DC/DC PMBUS 17A MODULE
Deep-Dive with AI
Search across all available documentation for this part.
ZL9117MIRZ
ActiveDIGITAL DC/DC PMBUS 17A MODULE
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | ZL9117MIRZ | ZL9117 Series |
|---|---|---|
| Applications | - | ITE (Commercial) |
| Current - Output (Max) | - | 17 A |
| Features | - | OCP, UVLO, OTP, OVP |
| Mounting Type | - | Surface Mount |
| null | - | |
| Number of Outputs | - | 1 |
| Operating Temperature | - | 85 °C |
| Operating Temperature | - | -40 °C |
| Package / Case | - | 21-PowerBQFN Module |
| Size / Dimension | - | 15 mm |
| Size / Dimension | - | 15 mm |
| Size / Dimension | - | 0.14 " |
| Size / Dimension | - | 3.5 mm |
| Size / Dimension | - | 0.59 in |
| Size / Dimension | - | 0.59 in |
| Supplier Device Package | - | 21-QFN (15x15) |
| Type | - | Non-Isolated PoL Module, Digital |
| Voltage - Input (Max) | - | 13.2 V |
| Voltage - Input (Min) | - | 4.5 V |
| Voltage - Output 1 | - | 0.6 V |
| Voltage - Output 1 | - | 3.6 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
ZL9117 Series
Digital DC/DC PMBus 17A Module
| Part | Voltage - Input (Min) [Min] | Type | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Voltage - Output 1 [Min] | Voltage - Output 1 [Max] | Operating Temperature [Max] | Operating Temperature [Min] | Voltage - Input (Max) [Max] | Applications | Supplier Device Package | Current - Output (Max) [Max] | Package / Case | Features | Number of Outputs | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Renesas Electronics Corporation ZL9117MBIRZ | ||||||||||||||||||||
Renesas Electronics Corporation ZL9117MIRZ | 4.5 V | Non-Isolated PoL Module, Digital | 15 mm | 15 mm | 0.14 " | 3.5 mm | 0.59 in | 0.59 in | 0.6 V | 3.6 V | 85 °C | -40 °C | 13.2 V | ITE (Commercial) | 21-QFN (15x15) | 17 A | 21-PowerBQFN Module | OCP, OTP, OVP, UVLO | 1 | Surface Mount |
Renesas Electronics Corporation ZL9117MAIRZ | 4.5 V | Non-Isolated PoL Module, Digital | 15 mm | 15 mm | 0.14 " | 3.5 mm | 0.59 in | 0.59 in | 0.6 V | 3.6 V | 85 °C | -40 °C | 13.2 V | ITE (Commercial) | 21-QFN (15x15) | 17 A | 21-PowerBQFN Module | OCP, OTP, OVP, UVLO | 1 | Surface Mount |
Renesas Electronics Corporation ZL9117MBIRZ | 4.5 V | Non-Isolated PoL Module, Digital | 15 mm | 15 mm | 0.14 " | 3.5 mm | 0.59 in | 0.59 in | 0.6 V | 3.6 V | 85 °C | -40 °C | 13.2 V | ITE (Commercial) | 21-QFN (15x15) | 17 A | 21-PowerBQFN Module | OCP, OTP, OVP, UVLO | 1 | Surface Mount |
Renesas Electronics Corporation ZL9117MIRZ-T | 4.5 V | Non-Isolated PoL Module, Digital | 15 mm | 15 mm | 0.14 " | 3.5 mm | 0.59 in | 0.59 in | 0.6 V | 3.6 V | 85 °C | -40 °C | 13.2 V | ITE (Commercial) | 21-QFN (15x15) | 17 A | 21-PowerBQFN Module | OCP, OTP, OVP, UVLO | 1 | Surface Mount |
Renesas Electronics Corporation ZL9117MIRZ | ||||||||||||||||||||
Renesas Electronics Corporation ZL9117MIRZ-T | ||||||||||||||||||||
Renesas Electronics Corporation ZL9117MAIRZ |
Description
General part information
ZL9117 Series
The ZL9117M is a 17A, variable output, step-down PMBus-compliant digital power supply. Included in the module is a high-performance digital PWM controller, power MOSFETs, an inductor, and all the passive components required for a highly integrated DC/DC power solution. This power module has built-in auto-compensation algorithms, which eliminate the need for manual compensation design work. The ZL9117M operates over a wide input voltage range and supports an output voltage range of 0. 6V to 3. 6V, which can be set by external resistors or via PMBus. This high-efficiency power module is capable of delivering 17A. Only bulk input and output capacitors are needed to finish the design. The output voltage can be precisely regulated to as low as 0. 6V with ±1% output voltage regulation over line, load, and temperature variations. The ZL9117M features auto-compensation, internal soft-start, auto-recovery overcurrent protection, an enable option, and prebiased output start-up capabilities. The ZL9117M is packaged in a thermally enhanced, compact (15mmx15mm) and low profile (3. 5mm) overmolded QFN package module suitable for automated assembly by standard surface mount equipment. The ZL9117M is RoHS compliant. For PMBus operation, it is recommended to tie the Enable pin (EN) to SGND.
