CO-174BNCX200-007.5

Active

AMPHENOL CABLES ON DEMAND

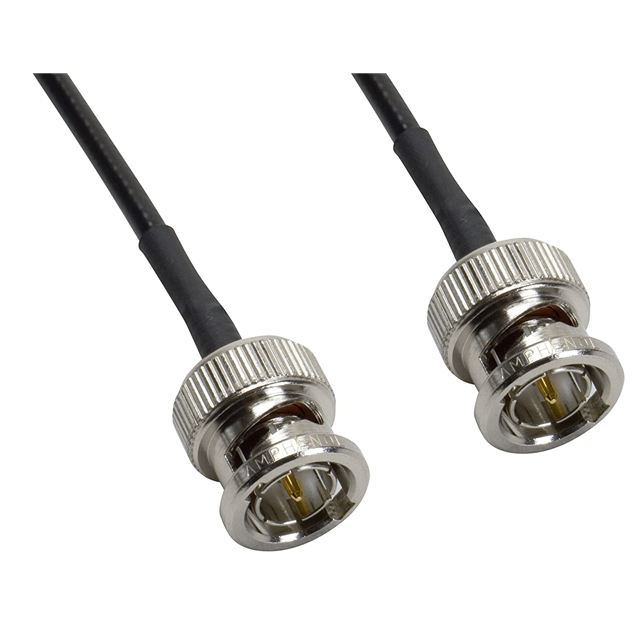

RF / COAXIAL CABLE ASSEMBLY, CABLE RG174/U, BNC PLUG TO BNC PLUG, RG174/U, 7.5 FT, 2.29 M, BLACK

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Technical Data Sheet EN

CO-174BNCX200-007.5

Active

AMPHENOL CABLES ON DEMAND

RF / COAXIAL CABLE ASSEMBLY, CABLE RG174/U, BNC PLUG TO BNC PLUG, RG174/U, 7.5 FT, 2.29 M, BLACK

Deep-Dive with AI

DocumentsDatasheet Technical Data Sheet EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	CO-174BNCX200-007.5	CO-174BNCX Series

1st Connector	BNC Plug	BNC Plug
1st Connector Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
1st Contact Gender	Male	Male
2nd Connector	BNC Plug	BNC Plug
2nd Connector Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
2nd Contact Gender	Male	Male
Cable Impedance	50 Ohms	50 Ohms
Cable Type	RG-174	RG-174
Color	Black	Black
Features	Shielded	Shielded
Frequency - Max [Max]	6000 MHz	6000 MHz
Length	7.5 ft	4 - 10 ft
Length	90 in	5 - 90 "
Length	2.3 m	1.5 - 1200 mm
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Style	BNC to BNC	BNC to BNC

CO-174BNCX Series

RF / COAXIAL CABLE ASSEMBLY, CABLE RG174/U, BNC PLUG TO BNC PLUG, RG174/U, 1 FT, 305 MM, BLACK

Part	Operating Temperature [Max]	Operating Temperature [Min]	1st Connector	Frequency - Max [Max]	Cable Impedance	Features	1st Connector Mounting Type	Cable Type	Length	Length	2nd Contact Gender	Color	2nd Connector	1st Contact Gender	2nd Connector Mounting Type	Style	Length
AMPHENOL CABLES ON DEMAND CO-174BNCX200-001	85 °C	-40 °C	BNC Plug	6000 MHz	50 Ohms	Shielded	Free Hanging (In-Line)	RG-174	12 "	304.8 mm	Male	Black	BNC Plug	Male	Free Hanging (In-Line)	BNC to BNC
AMPHENOL CABLES ON DEMAND CO-174BNCX200-012	85 °C	-40 °C	BNC Plug	6000 MHz	50 Ohms	Shielded	Free Hanging (In-Line)	RG-174			Male	Black	BNC Plug	Male	Free Hanging (In-Line)	BNC to BNC
AMPHENOL CABLES ON DEMAND CO-174BNCX200-002	85 °C	-40 °C	BNC Plug	6000 MHz	50 Ohms	Shielded	Free Hanging (In-Line)	RG-174	24 "	609.6 mm	Male	Black	BNC Plug	Male	Free Hanging (In-Line)	BNC to BNC
AMPHENOL CABLES ON DEMAND CO-174BNCX200-005	85 °C	-40 °C	BNC Plug	6000 MHz	50 Ohms	Shielded	Free Hanging (In-Line)	RG-174	5 '	1.5 m	Male	Black	BNC Plug	Male	Free Hanging (In-Line)	BNC to BNC	5 ft
AMPHENOL CABLES ON DEMAND CO-174BNCX200-015	85 °C	-40 °C	BNC Plug	6000 MHz	50 Ohms	Shielded	Free Hanging (In-Line)	RG-174	15 ft	4.6 m	Male	Black	BNC Plug	Male	Free Hanging (In-Line)	BNC to BNC	5 yd
AMPHENOL CABLES ON DEMAND CO-174BNCX200-010	85 °C	-40 °C	BNC Plug	6000 MHz	50 Ohms	Shielded	Free Hanging (In-Line)	RG-174	10 ft	3 m	Male	Black	BNC Plug	Male	Free Hanging (In-Line)	BNC to BNC	10 '
AMPHENOL CABLES ON DEMAND CO-174BNCX200-003	85 °C	-40 °C	BNC Plug	6000 MHz	50 Ohms	Shielded	Free Hanging (In-Line)	RG-174	36 in	91.44 cm	Male	Black	BNC Plug	Male	Free Hanging (In-Line)	BNC to BNC
AMPHENOL CABLES ON DEMAND CO-174BNCX200-004	85 °C	-40 °C	BNC Plug	6000 MHz	50 Ohms	Shielded	Free Hanging (In-Line)	RG-174	48 in	1200 mm	Male	Black	BNC Plug	Male	Free Hanging (In-Line)	BNC to BNC	4 ft
AMPHENOL CABLES ON DEMAND CO-174BNCX200-007.5	85 °C	-40 °C	BNC Plug	6000 MHz	50 Ohms	Shielded	Free Hanging (In-Line)	RG-174	90 in	2.3 m	Male	Black	BNC Plug	Male	Free Hanging (In-Line)	BNC to BNC	7.5 ft

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 19.96
		10	$ 15.37
		25	$ 13.91
		50	$ 12.92
		100	$ 12.03
		250	$ 10.97
		500	$ 10.26
		1000	$ 9.68
Newark	Each	10	$ 15.01
		25	$ 13.78
		50	$ 12.30
		100	$ 11.32
		250	$ 10.99

Description

General part information

CO-174BNCX Series

Cable Assembly Coaxial BNC to BNC RG-174 90.0" (2.3m) 7.5'

Documents

Technical documentation and resources

Datasheet

Technical Data Sheet EN

Datasheet
