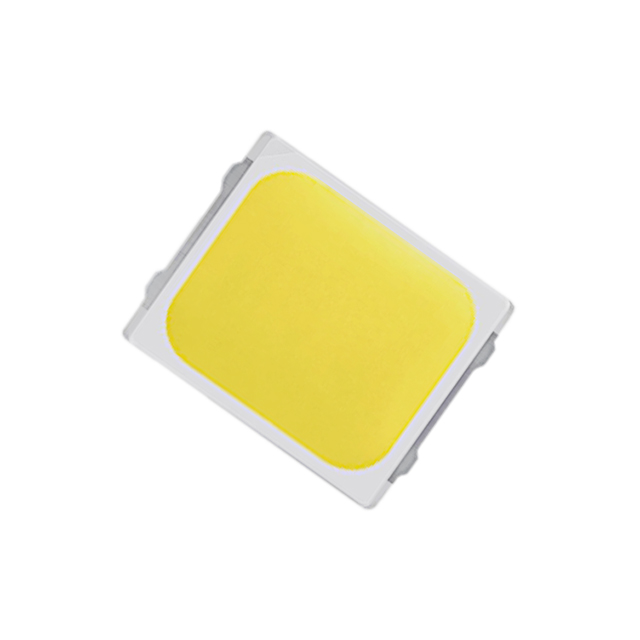

SPMWH1221FD5GBV0SB

Samsung Semiconductor, Inc.

LED LM282B WARM WHT 3000K 2835

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 0.46
		10	$ 0.30
		100	$ 0.20
		500	$ 0.14
		1000	$ 0.12
		2000	$ 0.11
	Digi-Reel®	1	$ 0.46
		10	$ 0.30
		100	$ 0.20
		500	$ 0.14
		1000	$ 0.12
		2000	$ 0.11
	Tape & Reel (TR)	4000	$ 0.07
		8000	$ 0.07

Description

General part information

SPMWH1221 Series

LED Lighting LM282B White, Warm 3000K 6.3V 150mA 120° 1113 (2835 Metric)

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	SPMWH1221FD5GBV0SB	SPMWH1221 Series

CCT (K)	-	2700 - 6500 K
Color	White, Warm	Cool, White, Warm, Neutral
CRI (Color Rendering Index)	80	80 - 90
Current - Max [Max]	160 mA	160 mA
Current - Test	150 mA	150 mA
Flux @ 25°C, Current - Test	115 lm	91 - 130 lm
Flux @ 25°C, Current - Test	-	95 - 130 lm
Flux @ 25°C, Current - Test	-	87 - 120 lm
Flux @ 25°C, Current - Test	-	135 lm
Flux @ 25°C, Current - Test	-	125 lm
Flux @ 25°C, Current - Test [Max]	120 lm	119 - 120 lm
Flux @ 25°C, Current - Test [Min]	110 lm	109 - 110 lm
Height - Seated (Max) [Max] [z]	0.03 in	0.03 in
Height - Seated (Max) [Max] [z]	0.75 mm	0.75 mm
Lumens/Watt @ Current - Test	122 lm/W	96 - 138 lm/W
Mounting Type	Surface Mount	Surface Mount
Package / Case	1113 (2835 Metric)	1113 (2835 Metric)
Size / Dimension [x]	0.138 "	0.138 "
Size / Dimension [x]	3.5 mm	3.5 mm
Size / Dimension [y]	0.11 in	0.11 in
Size / Dimension [y]	2.8 mm	2.8 mm
Supplier Device Package	2835	2835
Thermal Resistance of Package [diameter]	15 °C/W	15 °C/W
Viewing Angle	120 °	120 °
Voltage - Forward (Vf) (Typ)	6.3 V	6.3 V

SPMWH1221 Series

LED LM282B COOL WHITE 5000K 2835

...

Part	CCT (K)	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Flux @ 25°C, Current - Test	Flux @ 25°C, Current - Test [Max]	Flux @ 25°C, Current - Test [Min]	Mounting Type	Current - Max [Max]	Current - Test	Viewing Angle	Supplier Device Package	Lumens/Watt @ Current - Test	Package / Case	Color	CRI (Color Rendering Index)	Thermal Resistance of Package [diameter]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Voltage - Forward (Vf) (Typ)	Flux @ 25°C, Current - Test [Min]	Flux @ 25°C, Current - Test [Max]
Samsung Semiconductor, Inc. SPMWH1221FD5GBRMSB	5000 K	0.03 in	0.75 mm	125 lm	130 lm	120 lm	Surface Mount	160 mA	150 mA	120 °	2835	132 lm/W	1113 (2835 Metric)	Cool, White	80	15 °C/W	0.11 in	2.8 mm	0.138 "	3.5 mm	6.3 V
Samsung Semiconductor, Inc. SPMWH1221FD7GBRMSB	5000 K	0.03 in	0.75 mm	125 lm	130 lm	120 lm	Surface Mount	160 mA	150 mA	120 °	2835	132 lm/W	1113 (2835 Metric)	Cool, White	90	15 °C/W	0.11 in	2.8 mm	0.138 "	3.5 mm	6.3 V
Samsung Semiconductor, Inc. SPMWH1221FD7GBUKSB	3500 K	0.03 in	0.75 mm	118 lm			Surface Mount	160 mA	150 mA	120 °	2835	125 lm/W	1113 (2835 Metric)	Warm, White	90	15 °C/W	0.11 in	2.8 mm	0.138 "	3.5 mm	6.3 V
Samsung Semiconductor, Inc. SPMWH1221FQ5GBQKSB	5700 K	0.03 in	0.75 mm	129 lm			Surface Mount	160 mA	150 mA	120 °	2835	137 lm/W	1113 (2835 Metric)	Cool, White	80	15 °C/W	0.11 in	2.8 mm	0.138 "	3.5 mm	6.3 V
Samsung Semiconductor, Inc. SPMWH1221FQ7GBT0SA	4000 K	0.03 in	0.75 mm	99 lm			Surface Mount	160 mA	150 mA	120 °	2835	105 lm/W	1113 (2835 Metric)	Neutral, White	90	15 °C/W	0.11 in	2.8 mm	0.138 "	3.5 mm	6.3 V
Samsung Semiconductor, Inc. SPMWH1221FQ5GBPKSA	6500 K	0.03 in	0.75 mm	118 lm			Surface Mount	160 mA	150 mA	120 °	2835	125 lm/W	1113 (2835 Metric)	Cool, White	80	15 °C/W	0.11 in	2.8 mm	0.138 "	3.5 mm	6.3 V
Samsung Semiconductor, Inc. SPMWH1221FQ5GBQMSA	5700 K	0.03 in	0.75 mm	119 lm			Surface Mount	160 mA	150 mA	120 °	2835	126 lm/W	1113 (2835 Metric)	Cool, White	80	15 °C/W	0.11 in	2.8 mm	0.138 "	3.5 mm	6.3 V
Samsung Semiconductor, Inc. SPMWH1221FD5GBP0SA	6500 K	0.03 in	0.75 mm	115 lm			Surface Mount	160 mA	150 mA	120 °	2835	122 lm/W	1113 (2835 Metric)	Cool, White	80	15 °C/W	0.11 in	2.8 mm	0.138 "	3.5 mm	6.3 V	110 lm	120 lm
Samsung Semiconductor, Inc. SPMWH1221FD7GBRKSA	5000 K	0.03 in	0.75 mm	115 lm			Surface Mount	160 mA	150 mA	120 °	2835	122 lm/W	1113 (2835 Metric)	Cool, White	90	15 °C/W	0.11 in	2.8 mm	0.138 "	3.5 mm	6.3 V	110 lm	120 lm
Samsung Semiconductor, Inc. SPMWH1221FQ5GBQ0SA	5700 K	0.03 in	0.75 mm	119 lm			Surface Mount	160 mA	150 mA	120 °	2835	126 lm/W	1113 (2835 Metric)	Cool, White	80	15 °C/W	0.11 in	2.8 mm	0.138 "	3.5 mm	6.3 V
