HF625/38-30M

Active

CBL RIBN 38COND 0.039 GRAY 98.4'

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Cables & Accessories Selection Guide

HF625/38-30M

Active

CBL RIBN 38COND 0.039 GRAY 98.4'

Deep-Dive with AI

DocumentsDatasheet Cables & Accessories Selection Guide

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	150	$ 7.51

Description

General part information

HF625 Series

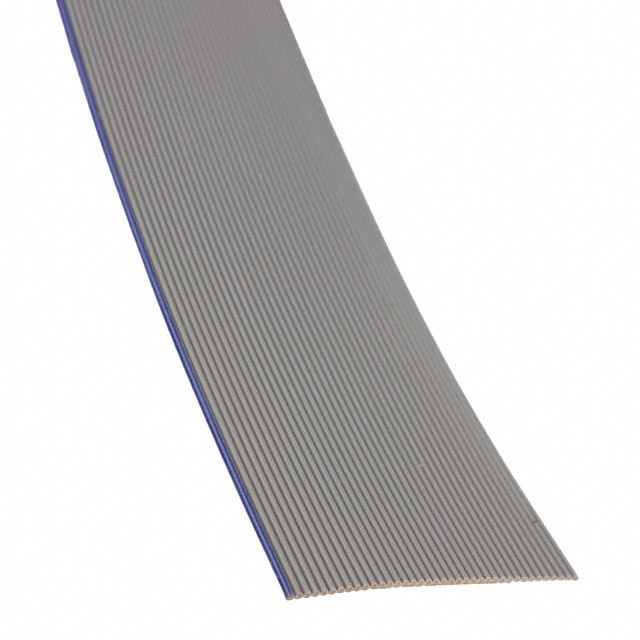

Flat Ribbon Cable Gray 38 Conductors 0.039" (1.00mm) Flat Cable 98.4' (30.00m)

Documents

Technical documentation and resources

Datasheet

Cables & Accessories Selection Guide

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	HF625/38-30M	HF625 Series

Cable Type	Flat Cable	Flat Cable
Conductor Material	Copper, Tinned	Copper, Tinned
Conductor Strand [custom]	7	7
Conductor Strand [custom]	36 AWG	36 AWG
Features	Zippable	Zippable
First Conductor Mark	Red	Red
Jacket (Insulation) Material	Polyolefin (PO)	Polyolefin (PO)
Jacket Color	Gray	Gray
Length	98.4 ft	3.28 - 328.1 ft
Length	30 m	1 - 100 m
Length	-	Enter Number of Meters in Order Quantity
Number of Conductors	38	6 - 50
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-40 °C	-40 °C
Pitch [x]	0.039 in	0.039 in
Pitch [x]	1 mm	1 mm
Ratings	UL Style 21682	UL Style 21682
Ribbon Thickness	0.89 mm	0.89 mm
Ribbon Thickness	0.035 in	0.035 in
Ribbon Width	38 mm	1.181 - 40 mm
Ribbon Width	1.496 in	0.236 - 1.575 in
Ribbon Width	-	10 - 43.99 mm
Ribbon Width	-	0.394 - 1.732 in
Ribbon Width	-	30 - 35.99 mm
Ribbon Width	-	0.63 - 1.339 "
Ribbon Width	-	16 - 34 mm
Ribbon Width	-	0.472 - 1.969 in
Ribbon Width	-	11.99 - 50.01 mm
Shielding	Unshielded	Unshielded
Spool Size	-	328.1 '
Spool Size	-	100 m
Voltage	300 V	300 V
Wire Gauge	28 AWG	28 AWG

HF625 Series

CBL RIBN 6COND 0.039 GRAY 32.8'

Part	First Conductor Mark	Operating Temperature [Min]	Operating Temperature [Max]	Features	Ribbon Thickness	Ribbon Thickness	Cable Type	Voltage	Length	Length	Ribbon Width	Ribbon Width	Wire Gauge	Shielding	Jacket Color	Ratings	Jacket (Insulation) Material	Pitch [x]	Pitch [x]	Conductor Strand [custom]	Conductor Strand [custom]	Number of Conductors	Conductor Material	Ribbon Width [custom]	Ribbon Width [custom]	Ribbon Width	Ribbon Width [y]	Ribbon Width [y]
3M HF625/06-100M	Red	-40 °C	105 ░C	Zippable	0.89 mm	0.035 in	Flat Cable	300 V	16.4 ', 98.4 ft	5 m, 30 m	6 mm	0.236 in	28 AWG	Unshielded	Gray	UL Style 21682	Polyolefin (PO)	0.039 in	1 mm	7	36 AWG	6	Copper, Tinned
3M HF625/44-30M	Red	-40 °C	105 ░C	Zippable	0.89 mm	0.035 in	Flat Cable	300 V	98.4 ft	30 m			28 AWG	Unshielded	Gray	UL Style 21682	Polyolefin (PO)	0.039 in	1 mm	7	36 AWG	44	Copper, Tinned	43.99 mm	1.732 in
3M HF625/22SF-100M	Red	-40 °C	105 ░C	Zippable	0.89 mm	0.035 in	Flat Cable	300 V	328.1 ft	100 m	22 mm	0.866 in	28 AWG	Unshielded	Gray	UL Style 21682	Polyolefin (PO)	0.039 in	1 mm	7	36 AWG	22	Copper, Tinned
3M HF625/36SF-30M	Red	-40 °C	105 ░C	Zippable	0.89 mm	0.035 in	Flat Cable	300 V	98.4 ft	30 m	1.417 in		28 AWG	Unshielded	Gray	UL Style 21682	Polyolefin (PO)	0.039 in	1 mm	7	36 AWG	36	Copper, Tinned			35.99 mm
3M HF625/20-100M	Red	-40 °C	105 ░C	Zippable	0.89 mm	0.035 in	Flat Cable	300 V	164 ft, 328.1 ft	50 m, 100 m	20 mm	0.787 in	28 AWG	Unshielded	Gray	UL Style 21682	Polyolefin (PO)	0.039 in	1 mm	7	36 AWG	20	Copper, Tinned
3M HF625/06SF-30M	Red	-40 °C	105 ░C	Zippable	0.89 mm	0.035 in	Flat Cable	300 V	98.4 ft	30 m	6 mm	0.236 in	28 AWG	Unshielded	Gray	UL Style 21682	Polyolefin (PO)	0.039 in	1 mm	7	36 AWG	6	Copper, Tinned
3M HF625/10-100M	Red	-40 °C	105 ░C	Zippable	0.89 mm	0.035 in	Flat Cable	300 V	164 ft, 229.7 ft	50 m, 70 m			28 AWG	Unshielded	Gray	UL Style 21682	Polyolefin (PO)	0.039 in	1 mm	7	36 AWG	10	Copper, Tinned	10 mm	0.394 in
3M HF625/34-100M	Red	-40 °C	105 ░C	Zippable	0.89 mm	0.035 in	Flat Cable	300 V	98.4 ft, 164 ft, 229.7 ft, 328.1 ft	30 m, 50 m, 70 m, 100 m			28 AWG	Unshielded	Gray	UL Style 21682	Polyolefin (PO)	0.039 in	1 mm	7	36 AWG	34	Copper, Tinned				1.339 "	34 mm
3M HF625/10SF-100M	Red	-40 °C	105 ░C	Zippable	0.89 mm	0.035 in	Flat Cable	300 V	328.1 ft	100 m			28 AWG	Unshielded	Gray	UL Style 21682	Polyolefin (PO)	0.039 in	1 mm	7	36 AWG	10	Copper, Tinned	10 mm	0.394 in
3M HF625/28SF-100M	Red	-40 °C	105 ░C	Zippable	0.89 mm	0.035 in	Flat Cable	300 V	328.1 ft	100 m	27.99 mm	1.102 in	28 AWG	Unshielded	Gray	UL Style 21682	Polyolefin (PO)	0.039 in	1 mm	7	36 AWG	28	Copper, Tinned
