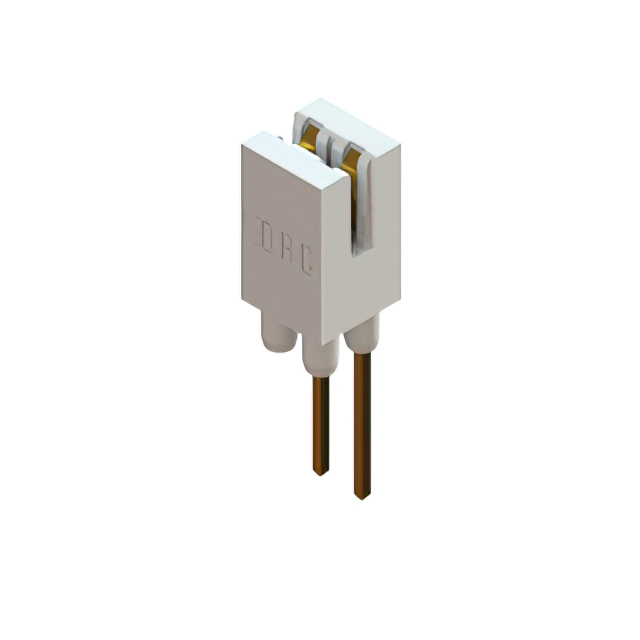

243-002-542-101

Active

EDAC Inc.

CONN EDGE SINGLE FML 2POS 0.200

Search across all available documentation for this part.

Active

EDAC Inc.

CONN EDGE SINGLE FML 2POS 0.200

Technical Specifications

Parameters and characteristics for this part

CONN EDGE SINGLE FML 2POS 0.200

Part	Contact Finish	Color	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Number of Rows	Gender	Material - Insulation	Contact Finish Thickness	Contact Finish Thickness	Card Type	Number of Positions	Read Out	Termination	Contact Type	Contact Material	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Pitch [x]	Pitch [x]
EDAC Inc. 243-002-542-101	Gold	White	-40 °C	105 ░C	Through Hole	1	Female	Polyester Thermoplastic	10 Áin	0.25 Ám	Non Specified - Single Edge	2	Single	Solder Eyelet(s)	Cantilever	Copper Alloy	1.37 mm	0.054 "	1.78 mm	0.07 in	0.2 in	5.08 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 9.10

General part information

2 Position Female Connector Non Specified - Single Edge Gold 0.200" (5.08mm) White
