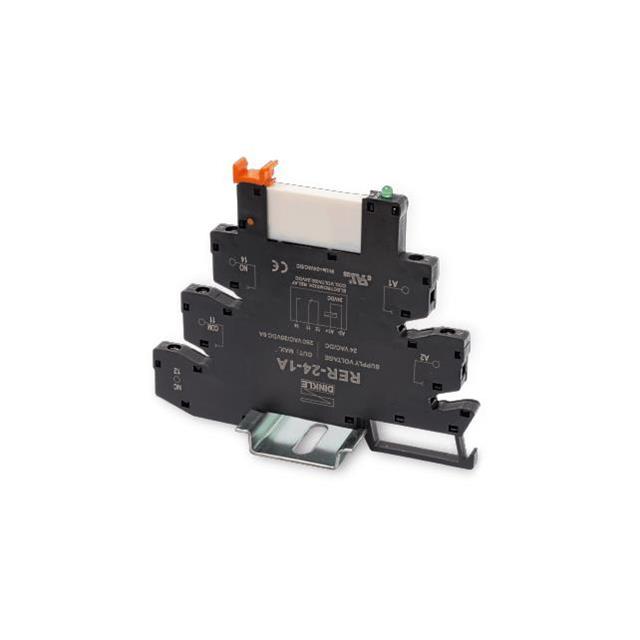

RER-24-1A

Active

Dinkle Corporation, USA

RELAY GEN PURPOSE SPDT 6A 24V

Search across all available documentation for this part.

Active

Dinkle Corporation, USA

RELAY GEN PURPOSE SPDT 6A 24V

Technical Specifications

Parameters and characteristics for this part

Specification	RER-24-1A

Coil Current	11.1 mA
Coil Resistance	2.162 kOhms
Coil Type	Non Latching
Coil Voltage	24 VAC
Contact Form	SPDT (1 Form C)
Contact Material	Silver Nickel (AgNi)
Contact Rating (Current)	6 A
Features	Lighted Indicator, Surge Protection
Mounting Type	DIN Rail
Operate Time	8 ms
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Relay Type	General Purpose
Release Time	4 ms
Switching Voltage [Max]	30 VDC, 250 VAC
Termination Style	Screw Terminal

RELAY GEN PURPOSE SPDT 6A 24V

Part	Coil Type	Relay Type	Features	Contact Material	Contact Form	Release Time	Switching Voltage [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Coil Current	Termination Style	Operate Time	Contact Rating (Current)	Coil Resistance	Coil Voltage
Dinkle Corporation, USA RER-24-1A	Non Latching	General Purpose	Lighted Indicator, Surge Protection	Silver Nickel (AgNi)	SPDT (1 Form C)	4 ms	30 VDC, 250 VAC	85 °C	-40 °C	DIN Rail	11.1 mA	Screw Terminal	8 ms	6 A	2.162 kOhms	24 VAC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

General Purpose Relay SPDT (1 Form C) 24VAC/DC Coil DIN Rail
