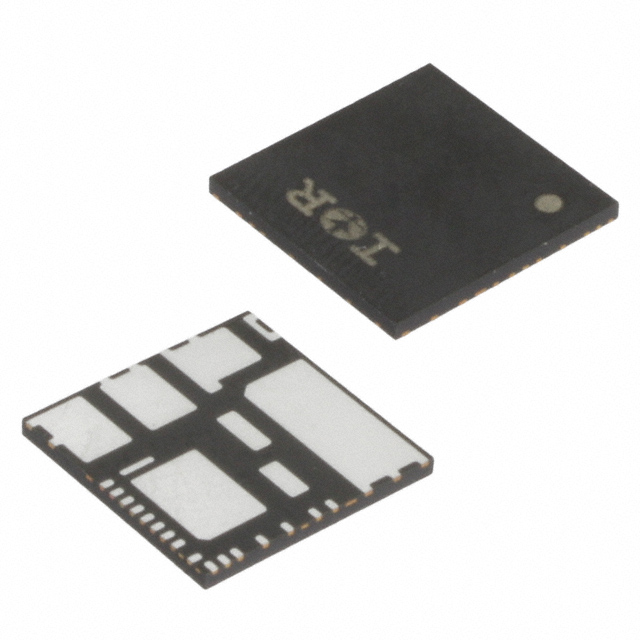

IRSM836-035MB

Active

Infineon Technologies

IC MTR DRIVER 13.5V-16.5V 27PQFN

Deep-Dive with AI

Search across all available documentation for this part.

IRSM836-035MB

Active

Infineon Technologies

IC MTR DRIVER 13.5V-16.5V 27PQFN

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	IRSM836-035MB

Applications	Appliance
Current - Output	3 A
Function	Driver - Fully Integrated, Control and Power Stage
Interface	Parallel
Motor Type - AC, DC	Synchronous, AC
Mounting Type	Surface Mount
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-40 °C
Output Configuration	Half Bridge (3)
Package / Case	31-PowerVQFN
Supplier Device Package	12x12, 27-PQFN
Technology	UMOS
Voltage - Load	400 V
Voltage - Supply [Max]	16.5 V
Voltage - Supply [Min]	13.5 V

IRSM836 Series

Part	Mounting Type	Rds On (Typ)	Features	Fault Protection	Technology	Current - Output / Channel [custom]	Output Configuration	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Supply [Min]	Voltage - Supply [Max]	Voltage - Load	Current - Peak Output	Interface	Supplier Device Package	Load Type	Applications	Package / Case	Voltage - Load [Max]	Function	Motor Type - AC, DC	Current - Output
Infineon Technologies IRSM836-015MA	Surface Mount	4.8 Ohm	Bootstrap Circuit	UVLO	UMOS	1 A	Half Bridge (3)	150 °C	-40 °C	13.5 V	16.5 V	400 V	7 A	Logic	36-PQFN (12x12)	Inductive	AC Motors	36-PowerVQFN
Infineon Technologies IRSM836-024MA	Surface Mount				UMOS		Half Bridge (3)	150 °C	-40 °C	13.5 V	16.5 V			Parallel	36-PQFN (12x12)		Appliance	36-PowerVQFN	200 V	Driver - Fully Integrated Control and Power Stage	AC Synchronous	2 A
Infineon Technologies IRSM836-035MB	Surface Mount				UMOS		Half Bridge (3)	150 °C	-40 °C	13.5 V	16.5 V	400 V		Parallel	12x12 27-PQFN		Appliance	31-PowerVQFN		Driver - Fully Integrated Control and Power Stage	AC Synchronous	3 A
Infineon Technologies IRSM836-044MA	Surface Mount				UMOS		Half Bridge (3)	150 °C	-40 °C	13.5 V	16.5 V			Parallel	36-PQFN (12x12)		Appliance	36-PowerVQFN	200 V	Driver - Fully Integrated Control and Power Stage	AC Synchronous	4 A
Infineon Technologies IRSM836-044MA	Surface Mount				UMOS		Half Bridge (3)	150 °C	-40 °C	13.5 V	16.5 V			Parallel	36-PQFN (12x12)		Appliance	36-PowerVQFN	200 V	Driver - Fully Integrated Control and Power Stage	AC Synchronous	4 A
Infineon Technologies IRSM836-025MATR	Surface Mount				UMOS		Half Bridge (3)	150 °C	-40 °C	13.5 V	16.5 V	400 V		Parallel	36-PQFN (12x12)		Appliance	36-PowerVQFN		Driver - Fully Integrated Control and Power Stage	AC Synchronous	2 A
Infineon Technologies IRSM836-024MATR	Surface Mount				UMOS		Half Bridge (3)	150 °C	-40 °C	13.5 V	16.5 V			Parallel	36-PQFN (12x12)		Appliance	36-PowerVQFN	200 V	Driver - Fully Integrated Control and Power Stage	AC Synchronous	2 A

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 7.69
		10	$ 5.98
		25	$ 5.55
		160	$ 4.96
		320	$ 4.94

Description

General part information

IRSM836 Series

Motor Driver UMOS Parallel 27-PQFN (12x12)

Documents

Technical documentation and resources

No documents available
