MP09018
ActiveGolledge Electronics Ltd

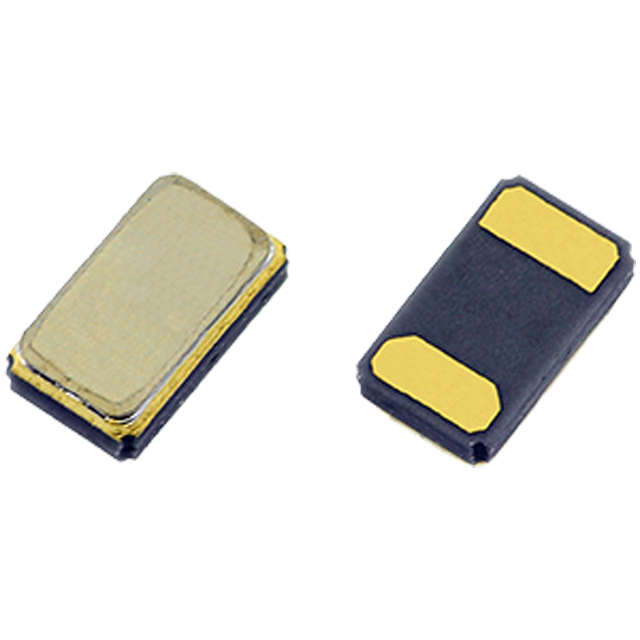

32.7680KHZ GWX-2012 CRYSTAL 20
MP09018
ActiveGolledge Electronics Ltd
32.7680KHZ GWX-2012 CRYSTAL 20
Description
General part information
MP09018
32.768 kHz ±20ppm Crystal 7pF 70 kOhms 2-SMD, No Lead
Technical Specifications
Parameters and characteristics for this part
| Specification | MP09018 |
|---|---|
| ESR (Equivalent Series Resistance) | 70 kOhm |
| Frequency | 0.032768 MHz |
| Frequency Tolerance | 20 ppm |
| Height - Seated (Max) | 0.024 in |
| Load Capacitance | 7 pF |
| Mounting Type | Surface Mount |
| Operating Mode | Fundamental |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | No Lead, 2-SMD |
| Size / Dimension Length | 0.079 in |
| Size / Dimension Width | 0.047 in |
| Type | kHz Crystal (Tuning Fork) |
