770581-1

Active

TE Connectivity AMP Connectors

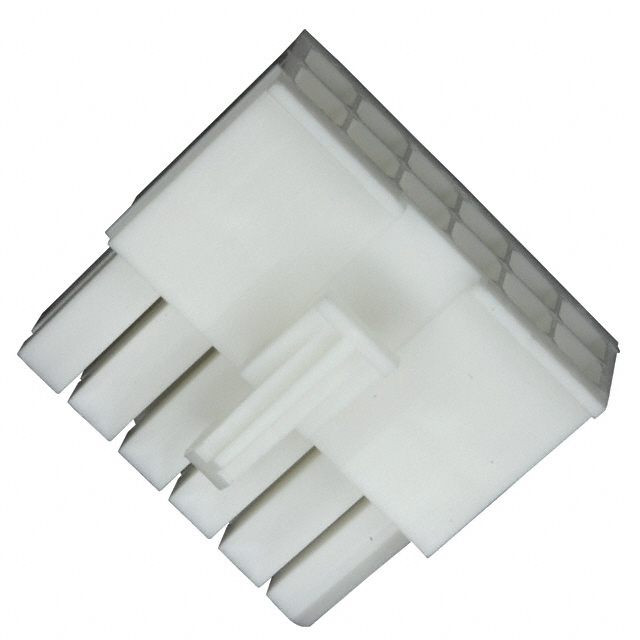

CONN PLUG HSG 12POS 4.14MM

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN PLUG HSG 12POS 4.14MM

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	770581-1	770581 Series

Color	White	Black, White
Connector Type	Plug	Plug
Contact Termination	Crimp	Crimp
Contact Type	Male or Female	Male or Female
Fastening Type	Latch Lock	Latch Lock
Insulation Material	Polyamide (PA), Nylon	Polyamide (PA46), Nylon 4/6, Polyamide (PA), Nylon
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Note	Contacts Not Included	Contacts Not Included
Number of Positions	12	12
Number of Rows	2	2
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-55 °C	-55 - -20 C
Pitch [x]	4.14 mm	4.14 mm
Pitch [x]	0.163 in	0.163 in
Row Spacing	4.14 mm	4.14 mm
Row Spacing	0.163 in	0.163 in

CONN PLUG HSG 12POS 4.14MM

Part	Contact Type	Contact Termination	Connector Type	Row Spacing	Row Spacing	Color	Number of Positions	Fastening Type	Operating Temperature [Min]	Operating Temperature [Max]	Number of Rows	Pitch [x]	Pitch [x]	Insulation Material	Note	Mounting Type
TE Connectivity AMP Connectors 1-770581-0	Male or Female	Crimp	Plug	4.14 mm	0.163 in	Black	12	Latch Lock	-20 C	105 ░C	2	4.14 mm	0.163 in	Polyamide (PA46), Nylon 4/6	Contacts Not Included	Free Hanging (In-Line)
TE Connectivity AMP Connectors 770581-1	Male or Female	Crimp	Plug	4.14 mm	0.163 in	White	12	Latch Lock	-55 °C	105 ░C	2	4.14 mm	0.163 in	Nylon, Polyamide (PA)	Contacts Not Included	Free Hanging (In-Line)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

12 Rectangular Connectors - Housings Plug White 0.163" (4.14mm)
