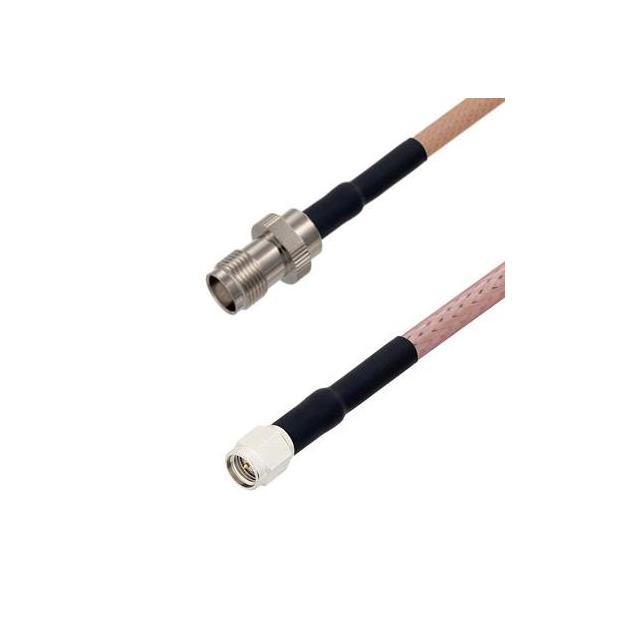

RG142 ASSY SMA MALE-TNC FEMALE 3
RG142-SM-TF(QTY:3m)
ActiveMcGill Microwave Systems
RG142 ASSY SMA MALE-TNC FEMALE 3
Description
General part information
RG142-SM-TF(QTY:3m)
RG142 ASSY SMA MALE-TNC FEMALE 3
Technical Specifications
Parameters and characteristics for this part
| Specification | RG142-SM-TF(QTY:3m) |
|---|---|
| 1st Connector | SMA Plug |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Contact Gender | Male |
| 2nd Connector | TNC Jack |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Female |
| Cable Impedance | 50 Ohms |
| Cable Type | RG, 142 |
| Color | Brown |
| Connector Impedance | 50 Ohms |
| Frequency - Max | 3 GHz |
| Length | 119 in |
| Operating Temperature (Max) | 200 °C |
| Operating Temperature (Min) | -55 °C |
| Overall Impedance | 50 Ohms |
| Style | SMA, TNC |
