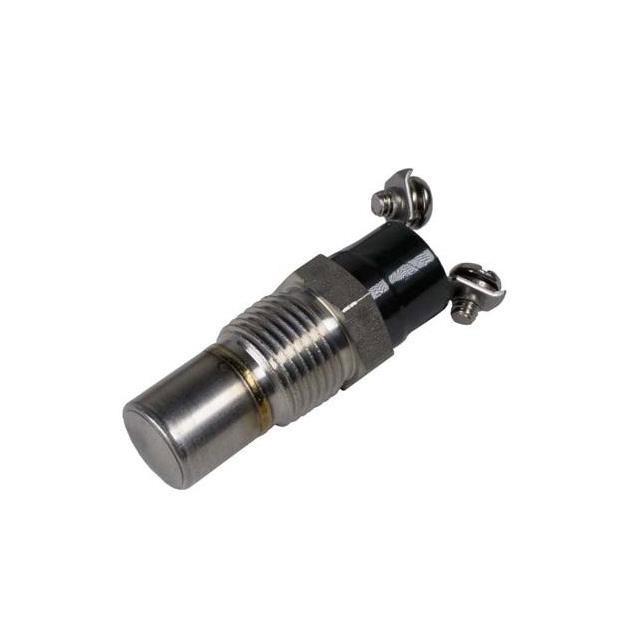

051AAA300A-200Y

Active

Sensata Technologies

THERMOSTAT 149DEG C SPST-NC CYL

Search across all available documentation for this part.

Active

Sensata Technologies

THERMOSTAT 149DEG C SPST-NC CYL

Technical Specifications

Parameters and characteristics for this part

THERMOSTAT 149DEG C SPST-NC CYL

Part	Mounting Type	Switching Temperature	Switching Temperature	Package / Case	Termination Style	Current Rating - DC	Current Rating - AC	Tolerance	Reset Temperature	Reset Temperature	Circuit	Switching Cycles
Sensata Technologies 051AAA300A-200Y	In Line	149 °C	300 °F	Cylinder, Threaded	Screw Terminal	3 A	1.5 A, 1.5 A, 2.5 A, 3 A	5 °F	200 °F	93 °C	SPST-NC	6 K

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 66.63

General part information

THERMOSTAT 149DEG C SPST-NC CYL

Technical documentation and resources

No documents available
