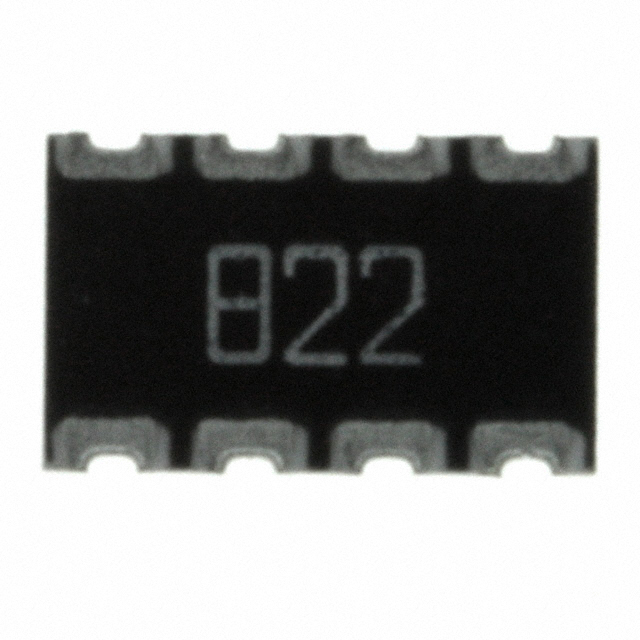

744C083822JP
ObsoleteTusonix a Subsidiary of CTS Electronic Components
RES ARRAY 4 RES 8.2K OHM 2012
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
744C083822JP
ObsoleteTusonix a Subsidiary of CTS Electronic Components
RES ARRAY 4 RES 8.2K OHM 2012
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 744C083822JP |
|---|---|
| Circuit Type | Isolated |
| Height - Seated (Max) [Max] | 0.7 mm |
| Height - Seated (Max) [Max] | 0.028 in |
| Mounting Type | Surface Mount |
| Number of Pins | 8 |
| Number of Resistors | 4 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | 2012, Long Side Terminals, Concave |
| Power Per Element | 125 mW |
| Resistance (Ohms) | 8.2 kOhms |
| Size / Dimension [x] | 5.08 mm |
| Size / Dimension [y] | 0.126 in, 3.2 mm |
| Temperature Coefficient | 200 ppm/°C |
| Tolerance | 5 % |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
744C083822JP
8.2k Ohm ±5% 125mW Power Per Element Isolated 4 Resistor Network/Array ±200ppm/°C 2012, Concave, Long Side Terminals
